REMS 153528 Hydro-Swing Set 10+12+14+15+16+17+18+20+22+25/26+32

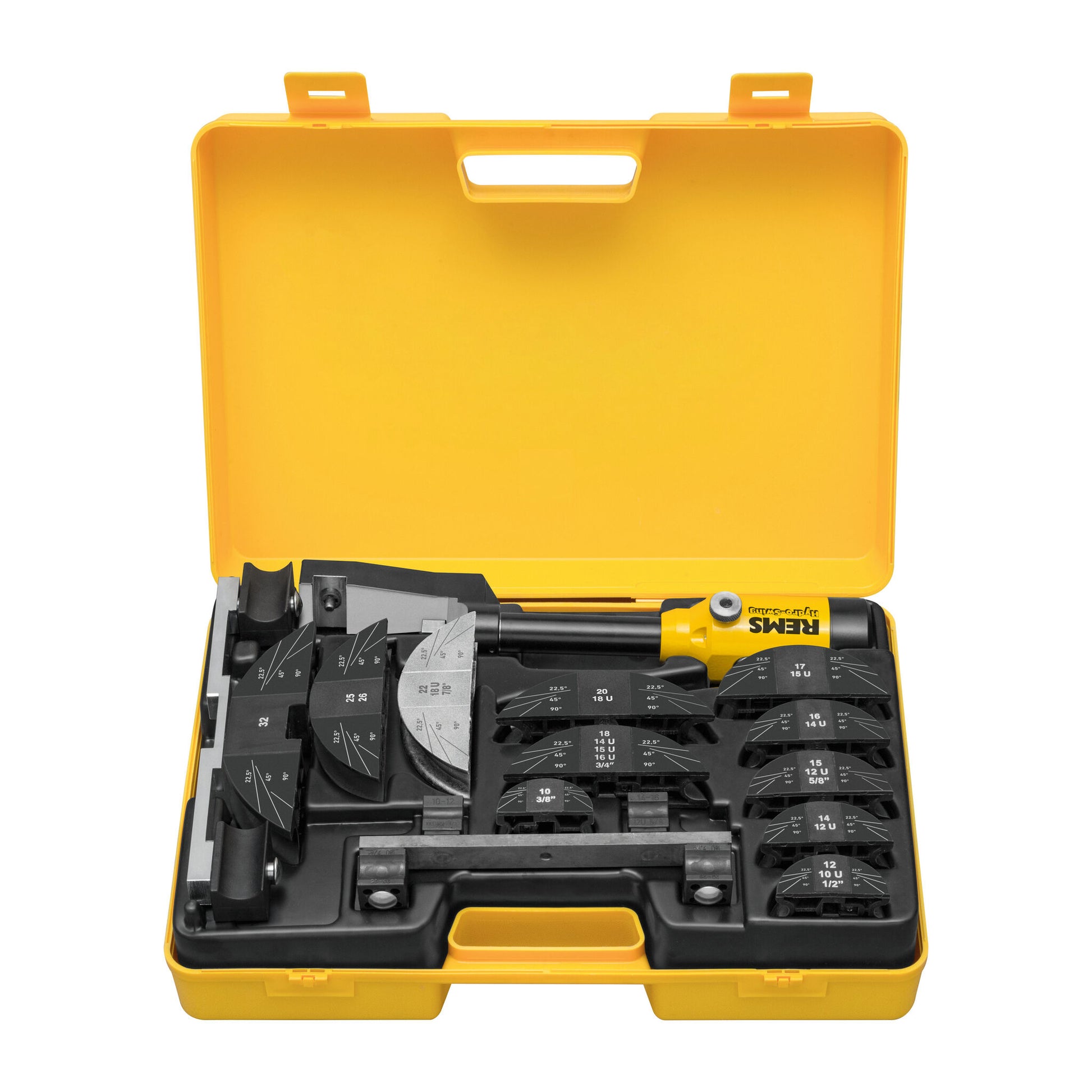

The REMS 153528 set includes the Hydro-Swing drive unit, 10+12+14+15+16+17+18+20+22+25/26+32 polyamide formers, carry case and inlay.

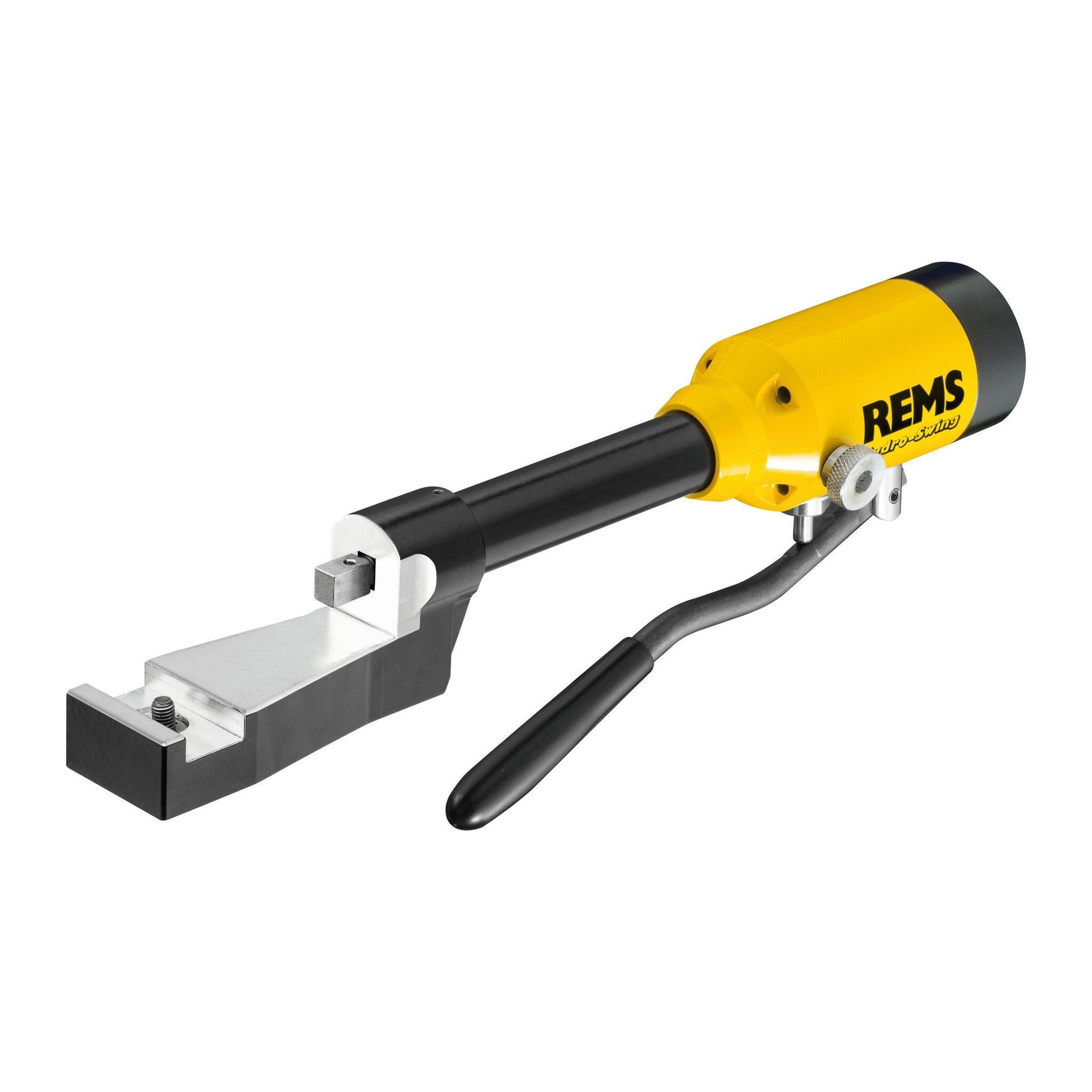

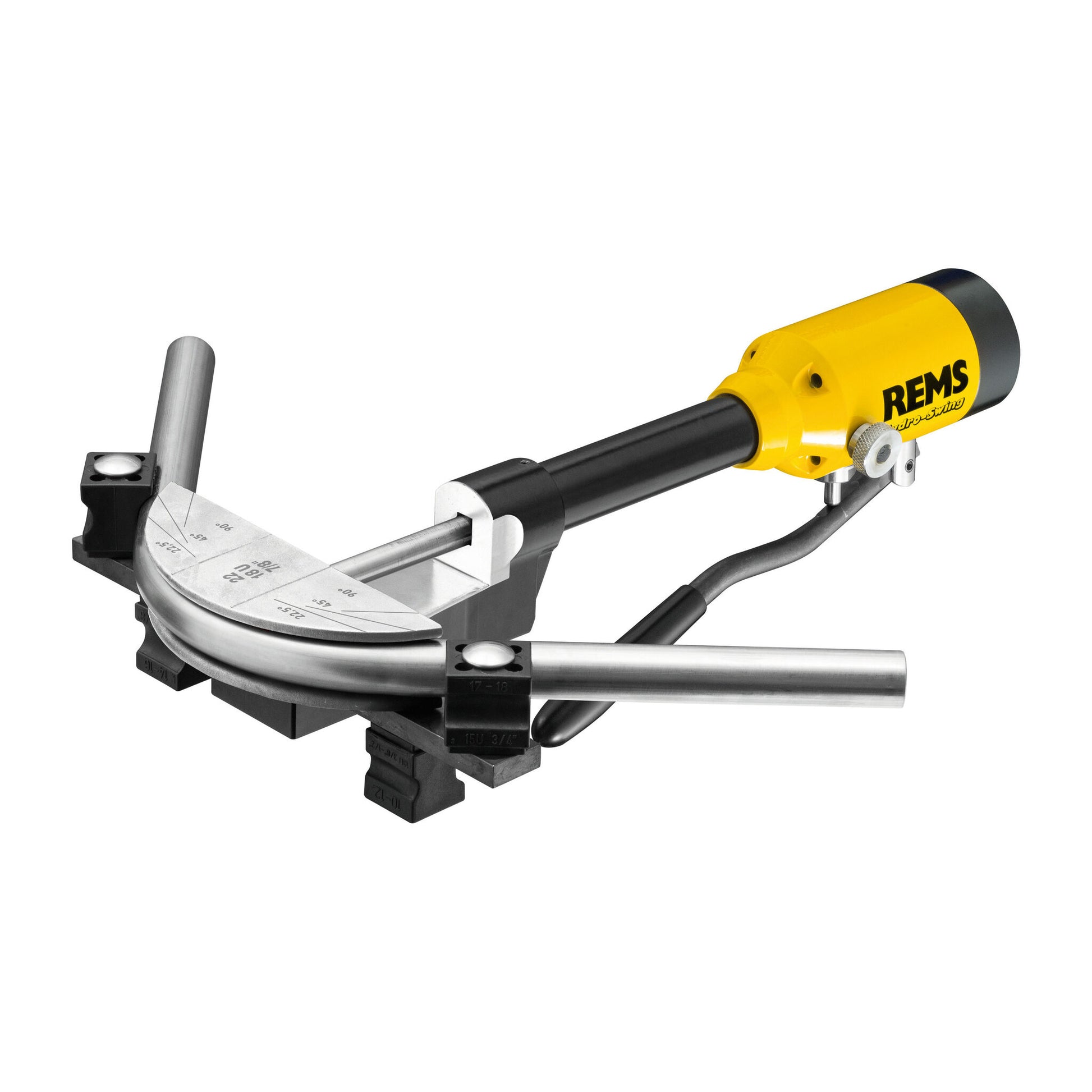

The REMS 153500 Hydro-Swing hand pipe bender features a compact, versatile maintenance-free oil-hydraulic drive unit for smooth bending of pipes up to 32 mm. Weighing just 2.4 kg, it achieves precise 90° bends in under 18 seconds on copper and steel tubes. Its interchangeable bending formers, rotatable back former support, and ergonomic thrust lever ensure dimensionally accurate, effortless operation on site.

The REMS Hydro-Swing hand pipe bender provides fast, reliable performance across plumbing, heating, and air-conditioning jobs, bending copper, steel, and stainless steel tubes up to 32 mm with consistent accuracy. Its maintenance-free, compact design and integrated support rollers reduce operator fatigue, while the oil-hydraulic mechanism delivers smooth, noiseless operation without manual adjustments. Ideal for tight spaces, it maximizes workshop and onsite productivity.

Features and Benefits

• Lightweight and compact
• Fast and easy former change
• Less joints, lower leaks
• Fast bending in around 18 seconds
• Ergonomic thrust lever

Technical Specification

• Weight: 2.4kg
• Soft Copper Pipes: 10-22mm
• Coated Soft Copper Tubes: 10-18mm
• Stainless Steel Press-fitting: 15-22mm
• Soft Coated Carbon Steel:12-18mm
• Soft Precision Steel Tubes:10-22mm
• Multi-layer Composite Tubes:14-32mm

What's Included?

• 153500 Hydro-Swing Drive Unit
• Former Set 10+12+14+15+16+17+18+20+25/26+32
• 153570 Case with Inlay
