REMS 401023 Mini-Press S 12v A2-22kN Basic-Pack (1x4Ah)

REMS 401023 Mini-Press S 12v A2-22kN Basic-Pack (1x4Ah)

Regular price £1,004.00 Including VAT
Regular price Sale price £1,004.00 Including VAT
Sale Sold out
FREE next day UK Mainland delivery on all orders over £100
Quantity

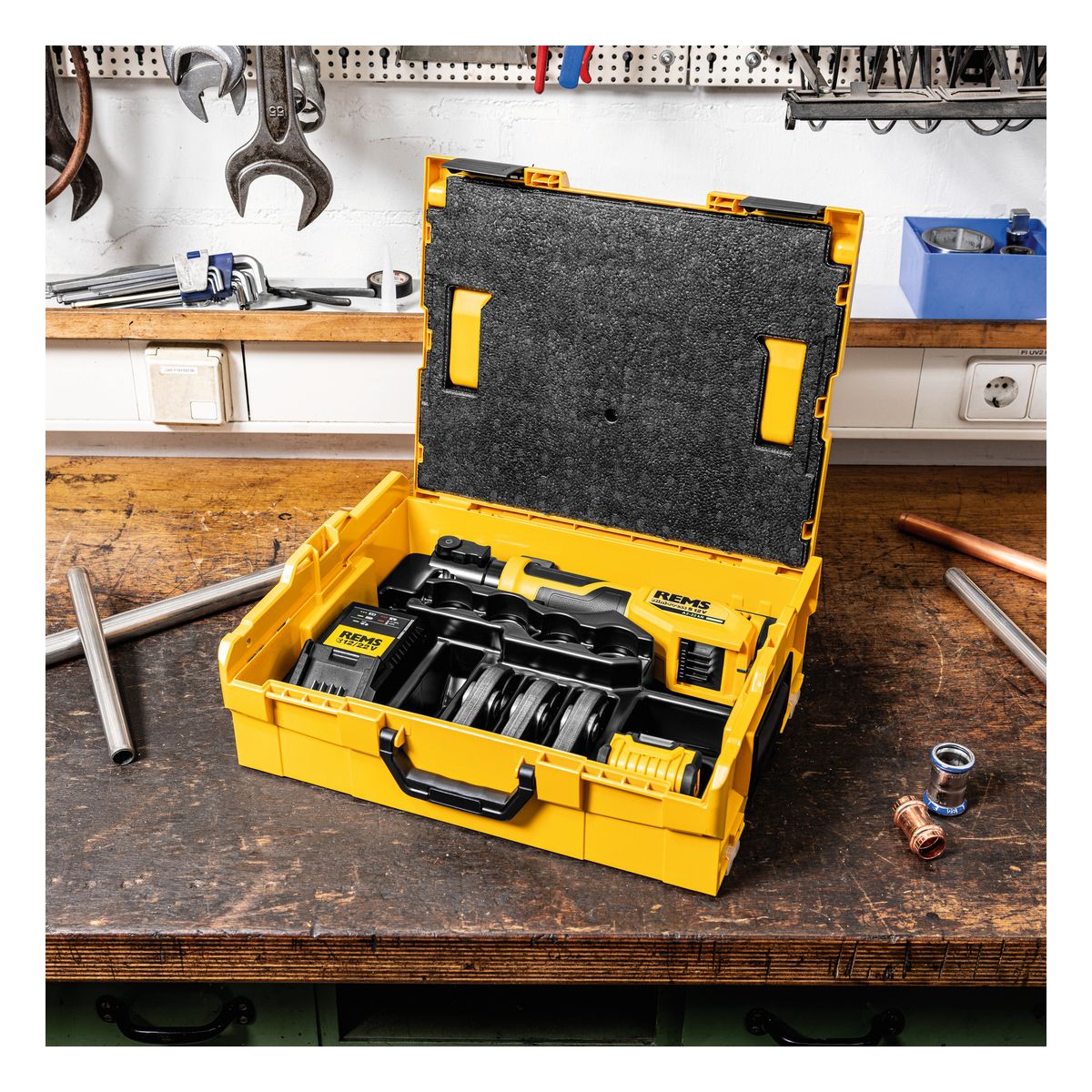

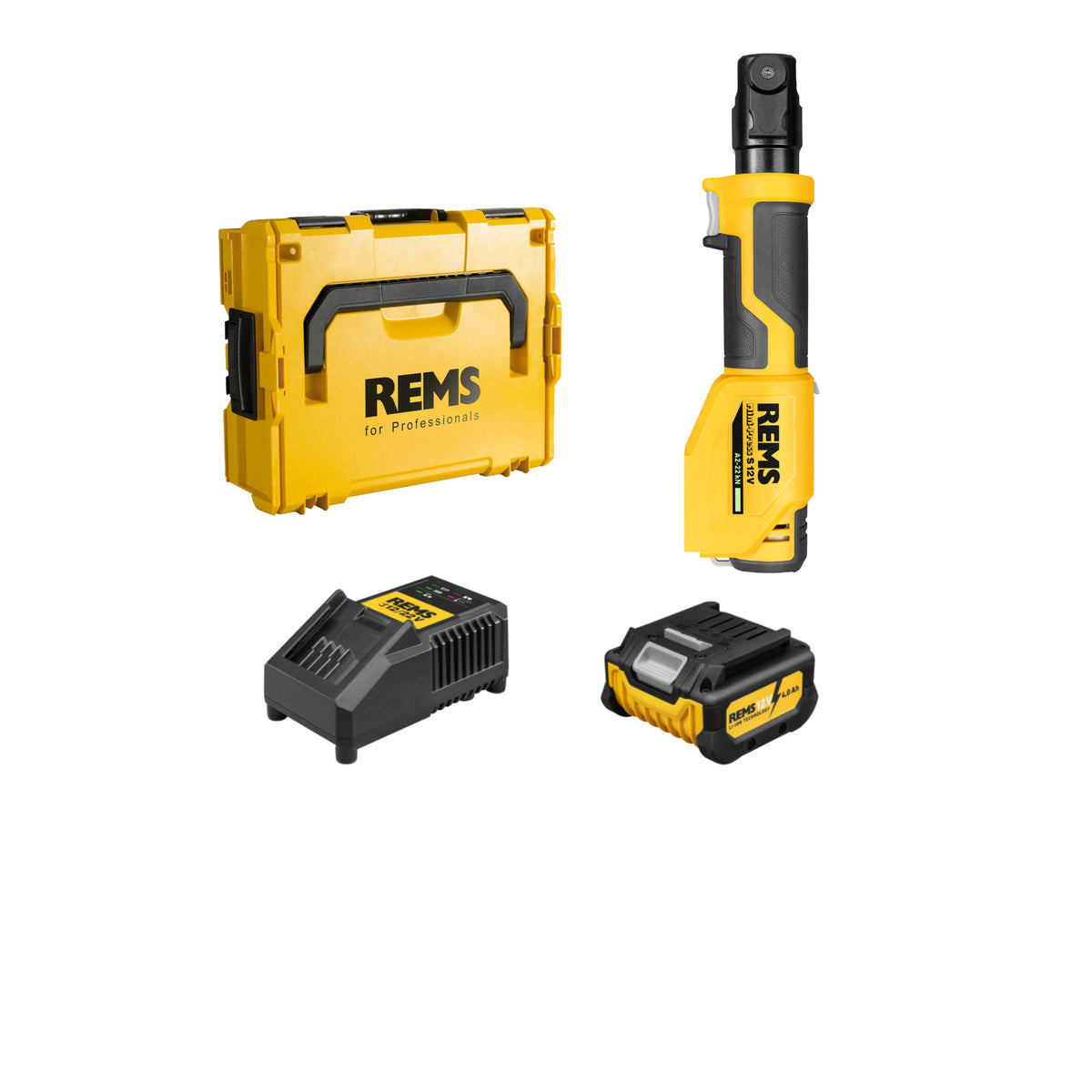

The REMS 401023 kit includes the Mini-Press S 12v A2-22kN drive unit, 1 x 4Ah battery, C12/22v rapid charger and L-Boxx case and inlay.

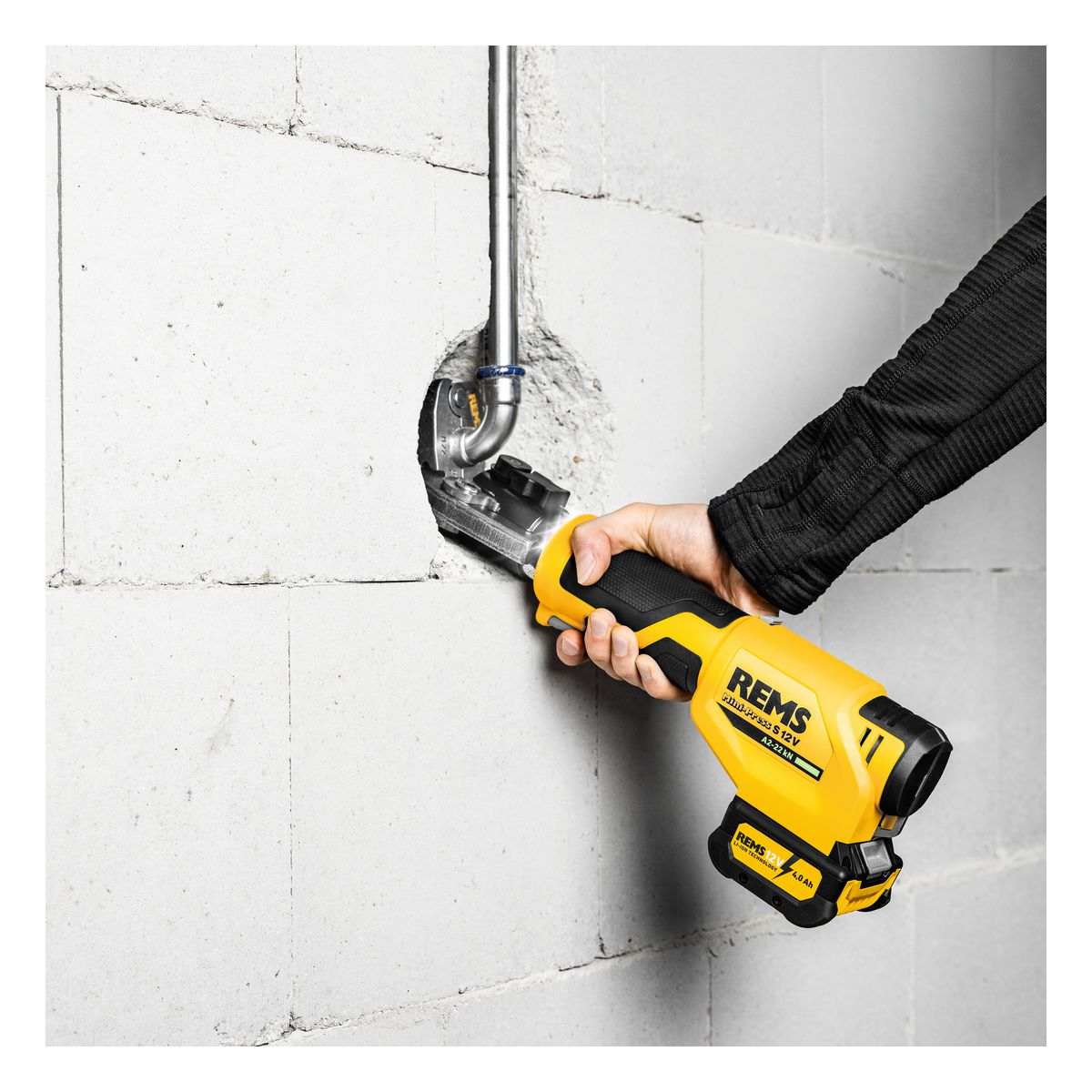

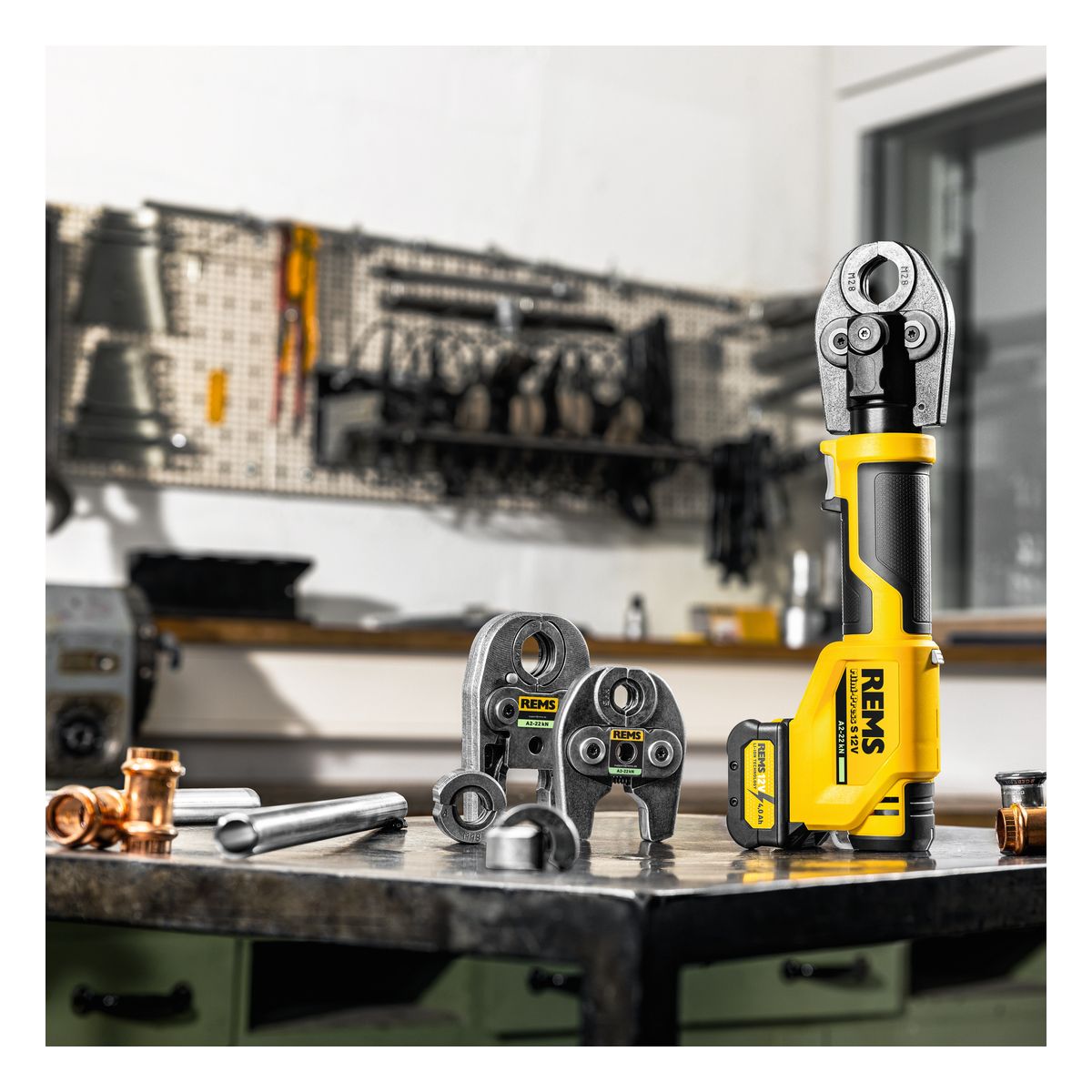

The REMS 401023 Mini-Press S 12v ACC Basic-Pack is a compact, ultra-light 12v cordless radial press for making pipe pressing joints from Ø6-40mm (ؼ-1¼"), supplied as a complete ready-to-work kit with battery, charger and L-Boxx system case. Weighing just 1.8kg and only 34cm long, it's built for genuine one-handed use, including overhead and in tight spaces, with a sturdy carrying ring for a shoulder strap.

Pressing takes under 4 seconds thanks to the powerful 230W electro-hydraulic drive and 22kN thrust force, with automatic circuit control switching the unit off and retracting the ram the moment a press is complete. A 360°-rotating tool holder with automatic tong locking makes it easy to work from any angle, while a ring of LED work lights keeps the pressing area well lit. The housing is dust and splash-water protected to IP54, and a two-colour LED charge indicator shows battery status at a glance. Backed by REMS's manufacturer warranty, extendable to 5 years with free registration at rems.de/service.

Features and Benefits

  • Ultra-light and compact, only 1.8kg (2.2kg with battery)
  • Pressing in under 4 seconds
  • 22kN thrust force, 360°-rotating pressing tool holder
  • Auto switch-off and ram retraction after pressing
  • Secure, automatic locking of pressing tongs
  • LED work lights arranged in a circle for even workplace illumination
  • Dust and splash-water protected to IP54
  • Two-colour LED charge/status indicator

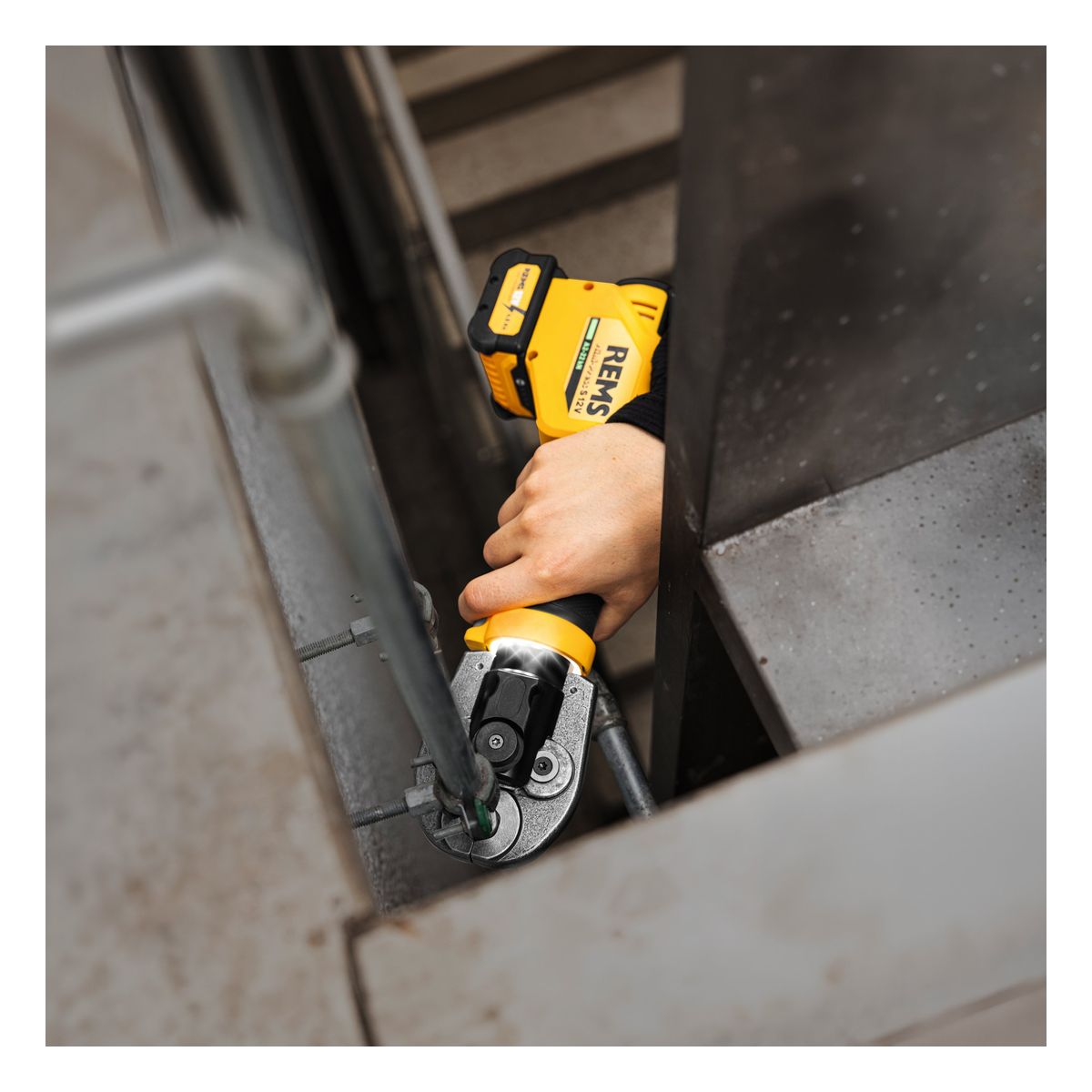

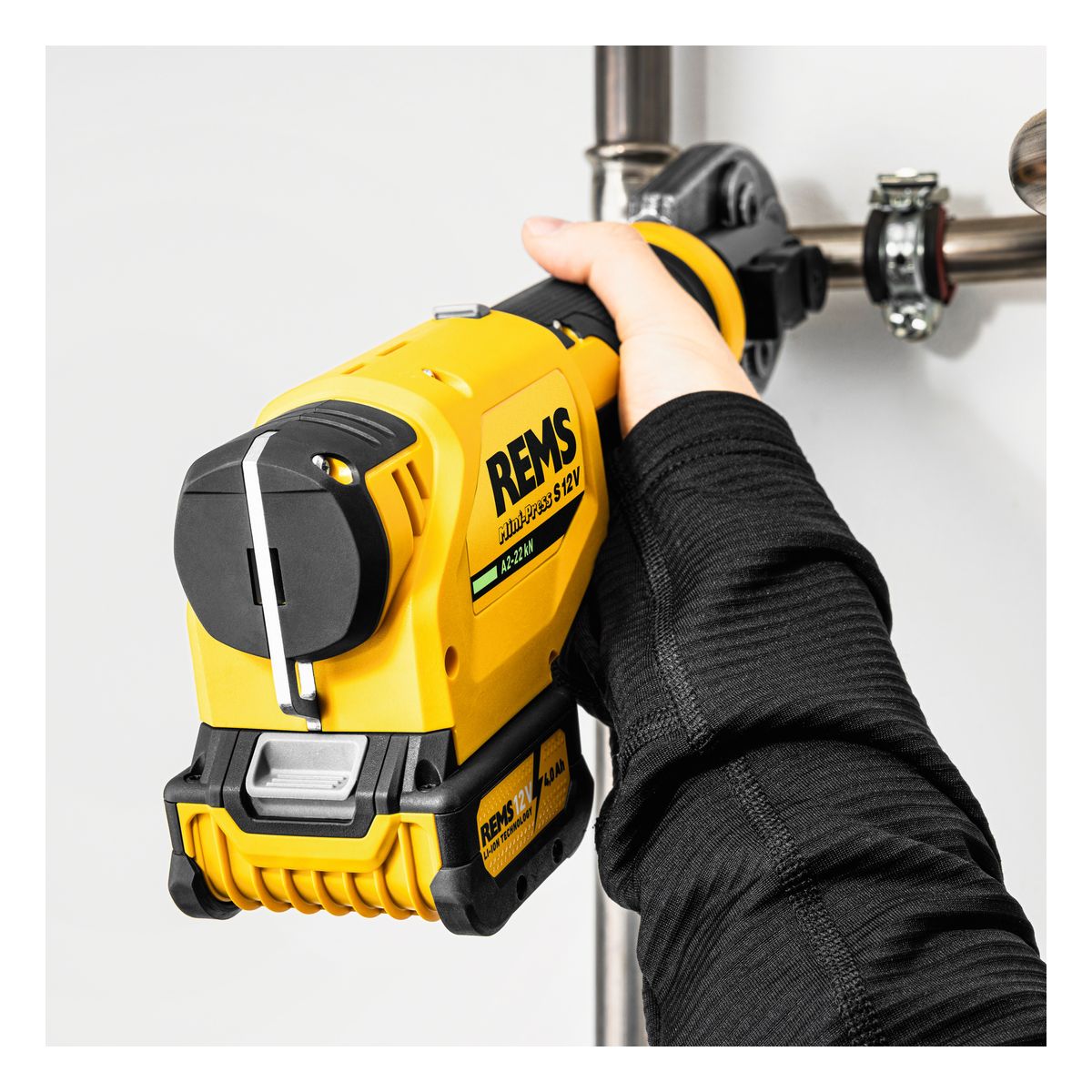

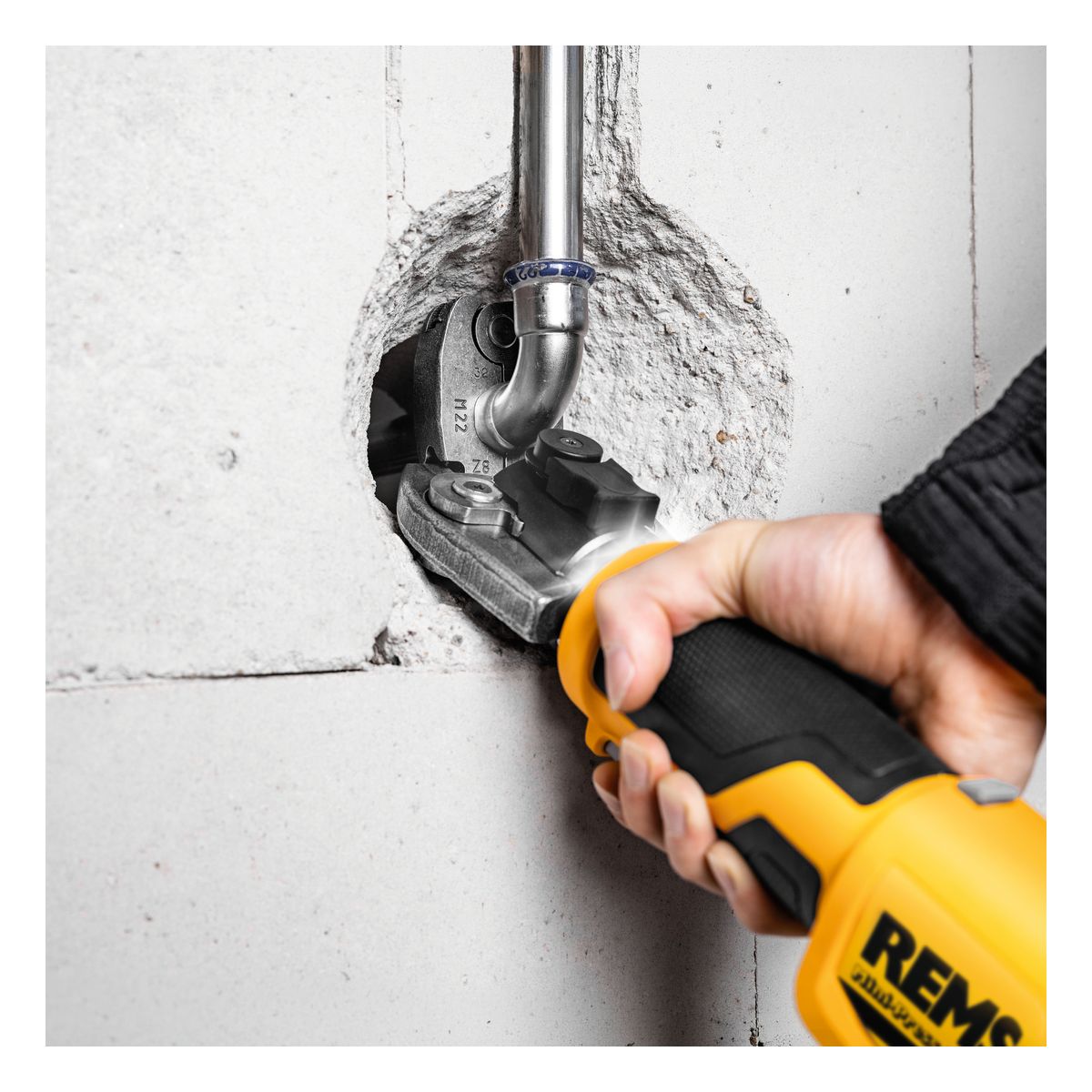

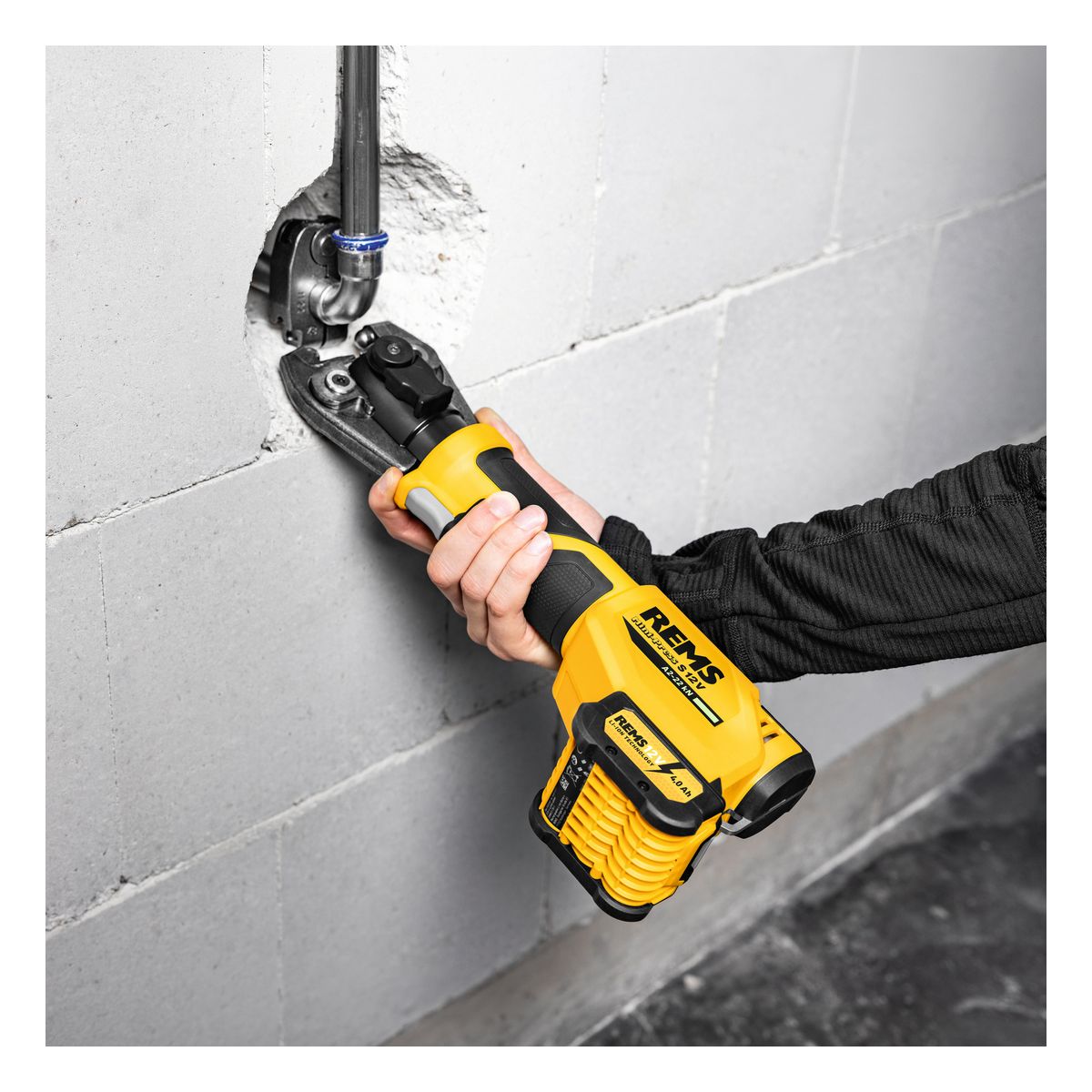

  • One-handed operation, works anywhere including overhead

Technical Specification

  • Pressing Range: Ø6-40mm, ؼ-1¼"
  • Thrust Force: 22kN
  • Pressing Time: under 4 seconds
  • Weight: 1.8kg (drive unit only), 2.2kg (with battery)
  • Length: 34cm
  • Motor: 12v, 230W, electro-hydraulic drive
  • Battery: Li-Ion 12v, 4.0Ah, 48Wh
  • Charger: Rapid charger C 12/22v, 100-240v, 50-60Hz, 100W
  • Protection Rating: IP54 (dust and splash-water protected)

What's Included?

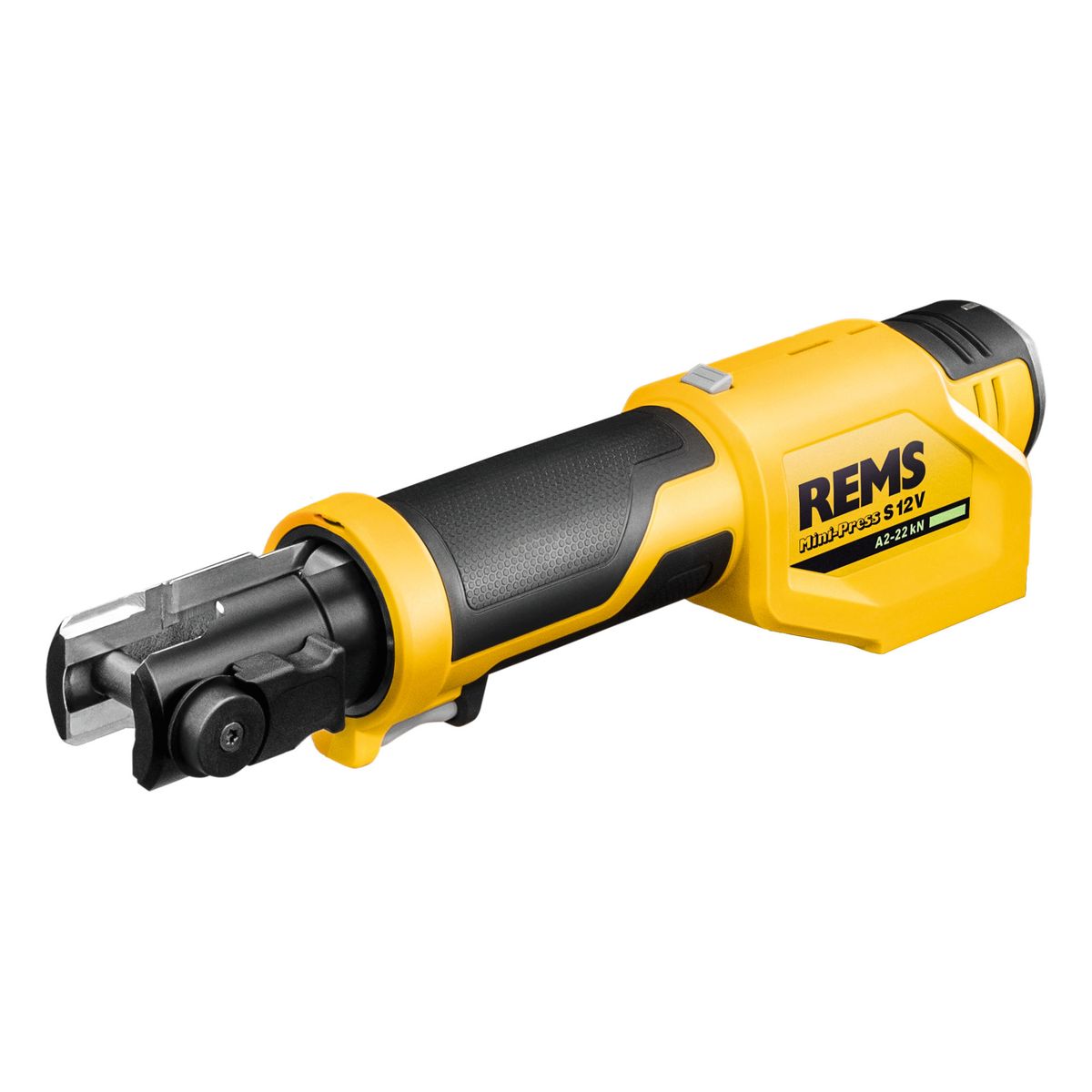

  • 401000 Mini-Press S 12v A2-22kN drive unit

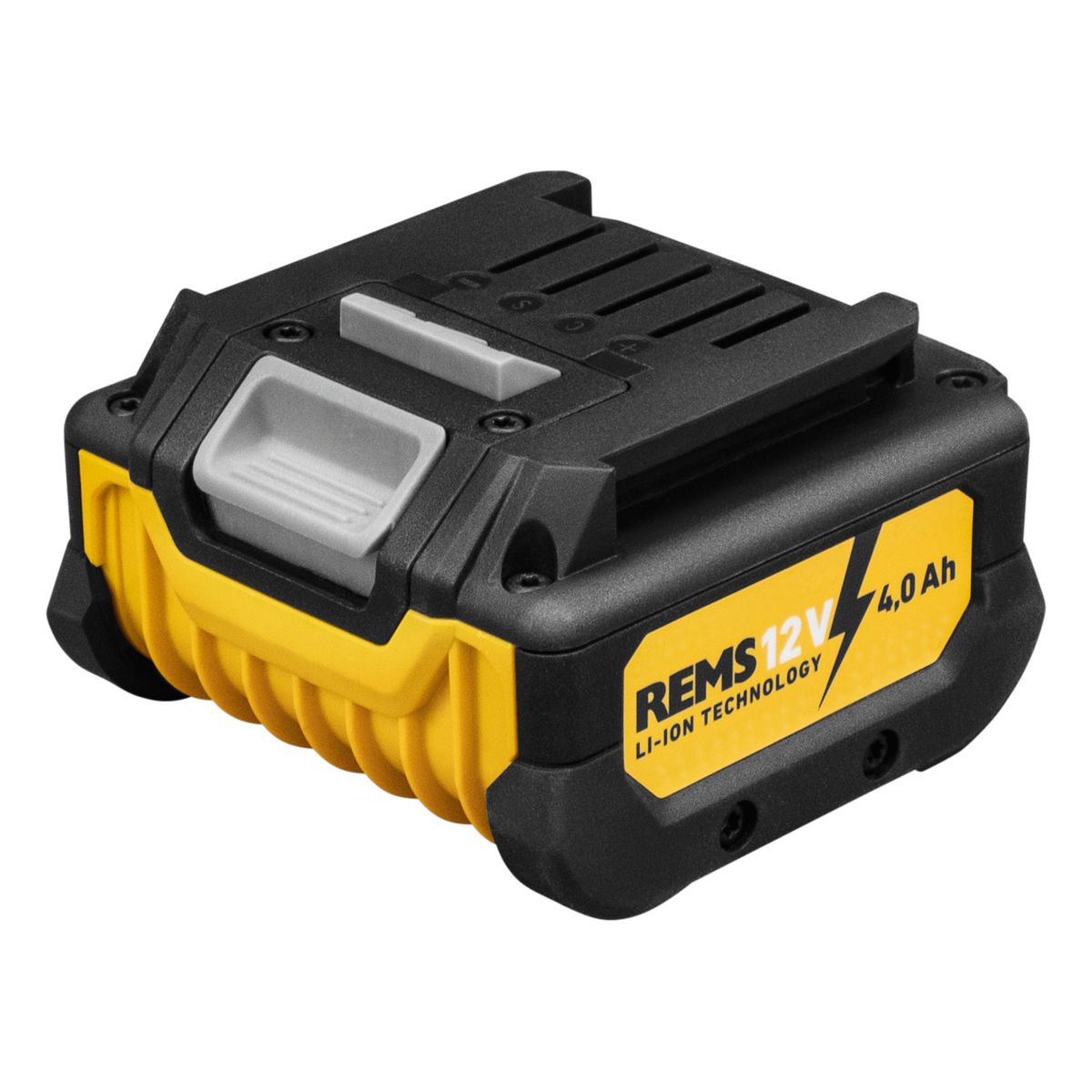

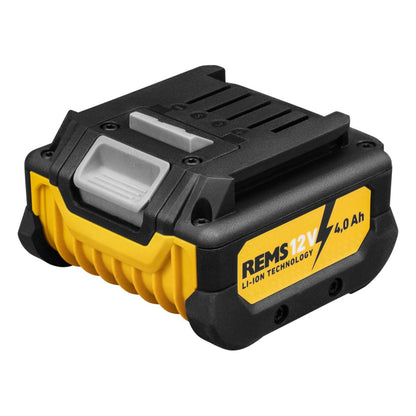

  • 500100 Li-Ion 12v, 4Ah, 48Wh battery

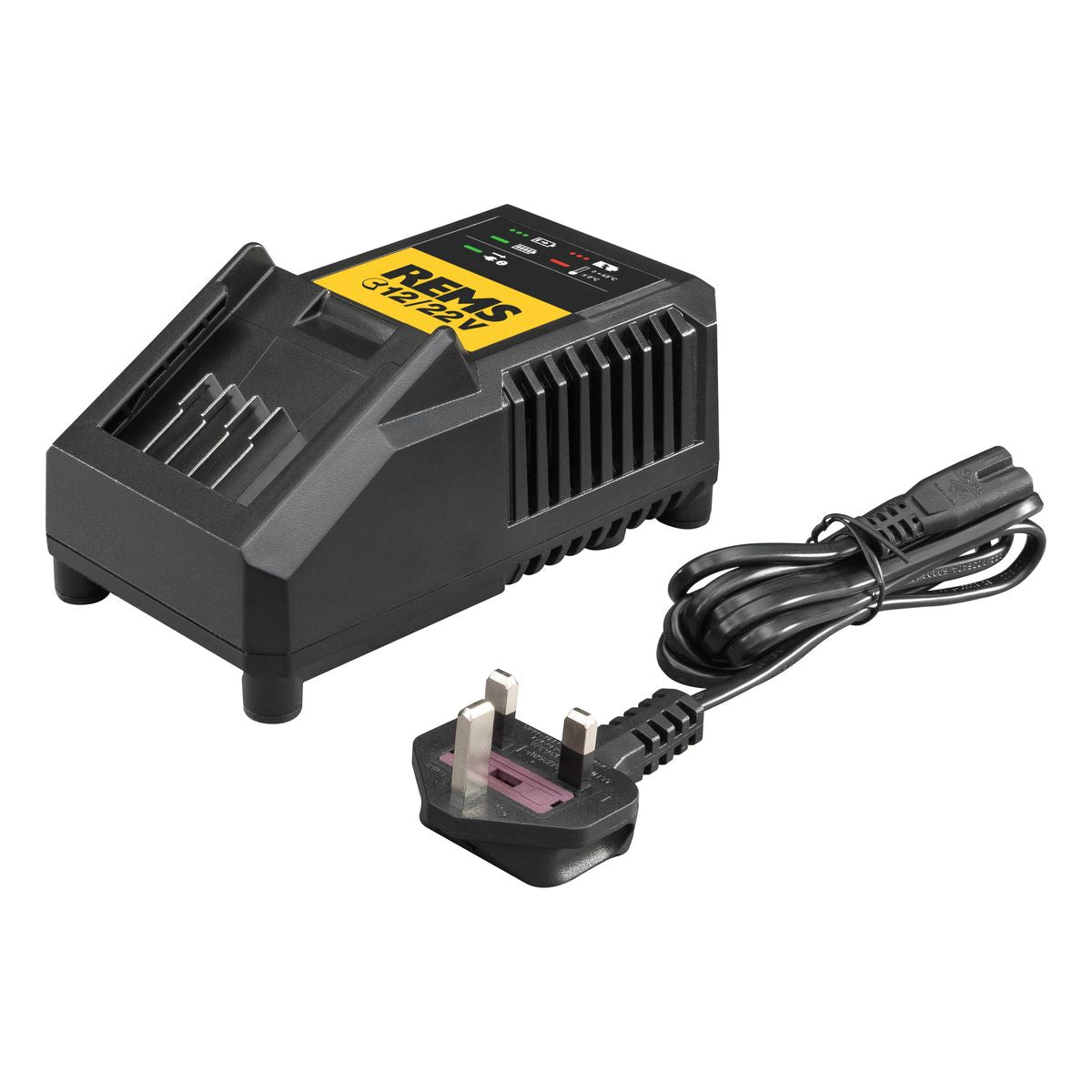

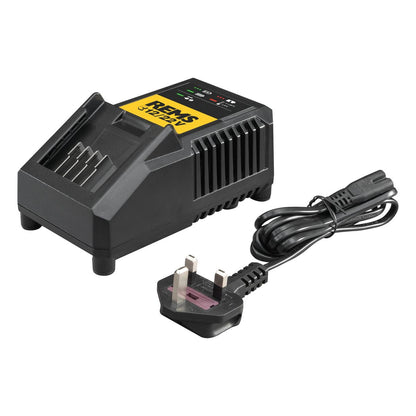

  • 500120 Rapid Charger C 12/22v, 240v, 100w

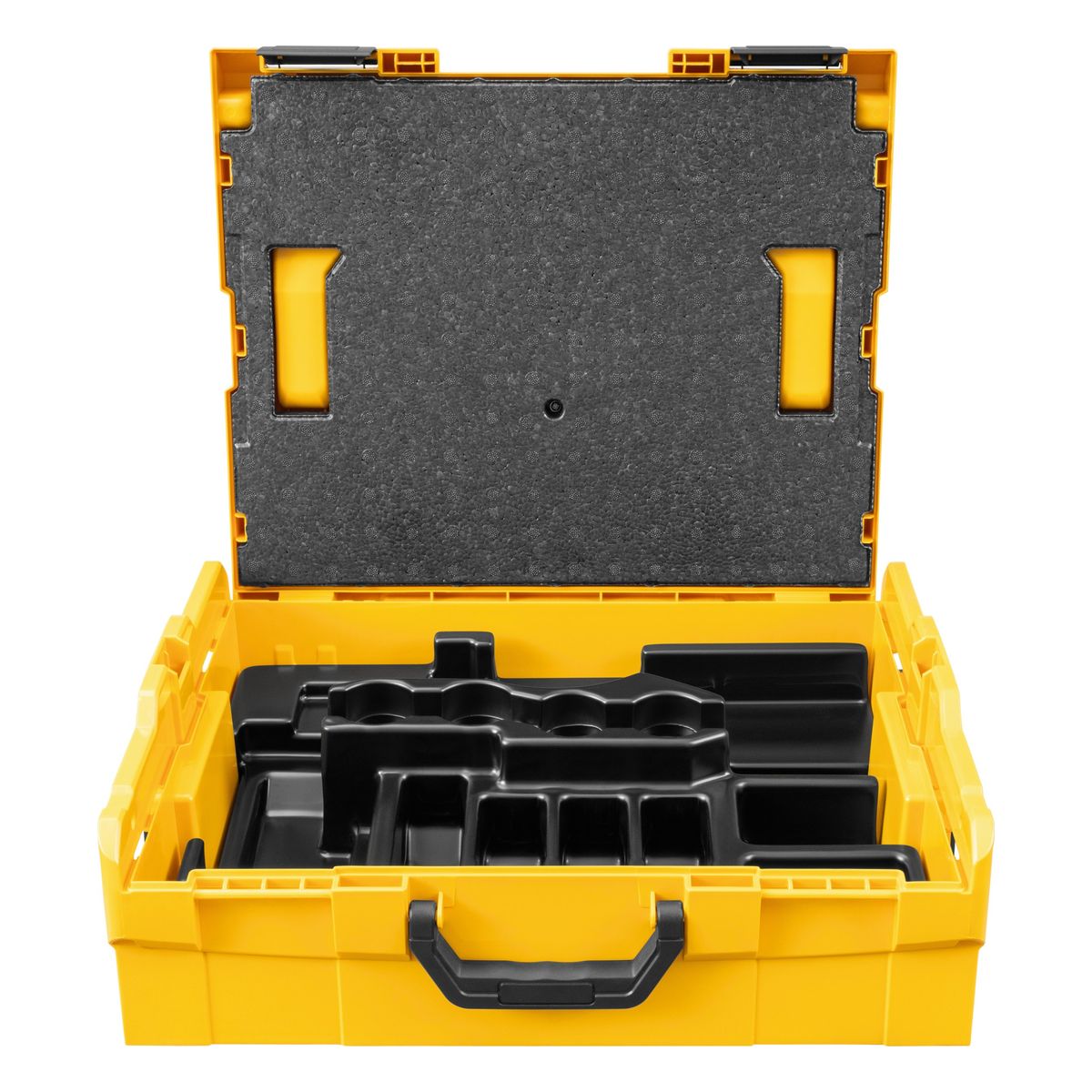

  • 401170 L-Boxx system case with inlay
