REMS 610050 FG4500 C Set Flue Gas Analyser

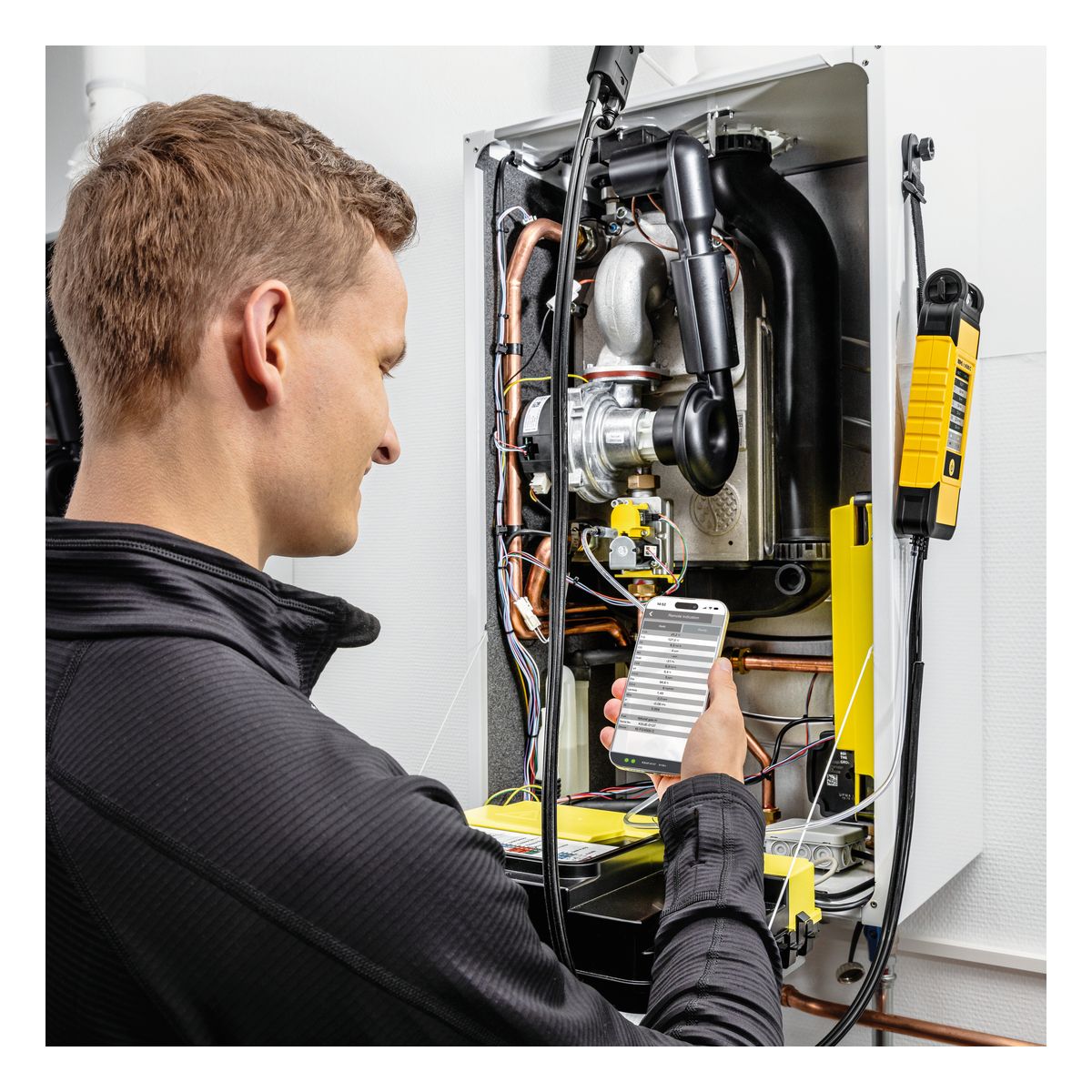

The REMS 610050 FG4500 C Set is a compact flue gas analyser that tells you exactly what's happening inside a boiler or heating system's exhaust gases, so you can check it's burning safely and efficiently. In plain terms: you connect the probe to the flue and the device reads the gases coming out and checks the system pressure, telling you whether the appliance is working as it should. It's the kind of test a Gas Safe engineer or heating technician needs for servicing boilers, checking new installations and routine safety testing on drinking water, heating and gas installations.

Weighing only 425g, it's built for genuine one-hand use, with a sturdy, impact-resistant housing and a clear 3.5" touchscreen that walks you through each test step by step, so you're never guessing what to do next. The gas cartridge sits behind a large viewing window with quick-release catches, so cleaning the condensate tank or swapping filters takes moments rather than minutes. Results can be saved, logged, or sent straight to your phone or laptop over Bluetooth or USB using the free REMS mCon app. Backed by REMS's manufacturer warranty, extendable to 2 years with free registration at rems.de/service.

Features and Benefits

• All-in-one flue gas analysis and pressure testing device
• Ultra-light at only 425g, for genuine one-hand use
• Internal O2 and CO gas sensors, plus internal pressure sensor
• Sturdy, impact-resistant housing with protected gas cartridge
• Quick-release catches for fast cleaning and filter changes
• 3.5" colour touchscreen with step-by-step guided menus
• Connected functionality via Bluetooth (mCon App) or USB (PC200P)
• Data logging with date, time and log number
• Rechargeable Li-Ion battery for approx. 8 hours continuous use
• Magnetic and Velcro fastening kit for hands-free positioning

Technical Specification

• Weight: 425g (measuring instrument)
• Display: 3.5" colour TFT LCD, touch function, 320 x 240px
• Flue Gas Analysis: to EN 50379 Parts 1 and 3
• Pressure Testing (air/inert gas): up to 0.4MPa/4 bar
• Pressure Testing (water): up to 2.5MPa/25 bar
• Internal Pressure Sensor: up to 150 hPa/mbar
• Battery: Li-Ion 3.7V, 2.7Ah, approx. 8 hours continuous use
• Probe: Thermocouple, Dm 6mm x 240mm, 1.5m flexible hose
• Power Supply/Charger: 100-240V, 50-60Hz, 7.5W, 5V, 1.5A

What's Included?

• 610050 FG4500 C measuring instrument with gas processing cartridge
• Flue gas probe FG4500 with temperature sensor
• 10 filter fleece pads
• 5 filter discs
• Pressure hose PX/FG, Dm 5mm, 1m long
• Fastening kit (Velcro, hanging eye, magnet)
• USB-C to USB-A cable
• Power supply/charger, 100-240V
• L-Boxx system case
