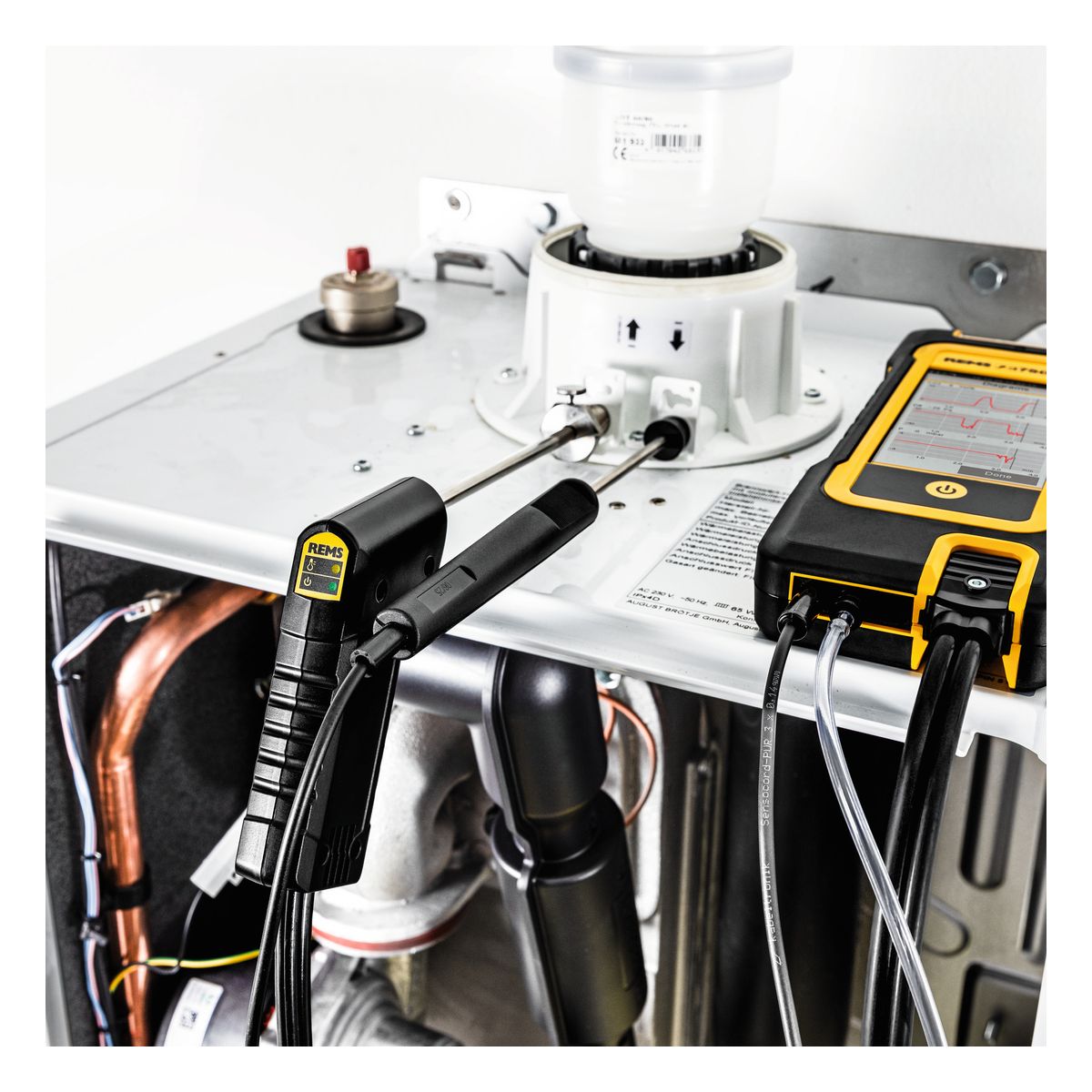

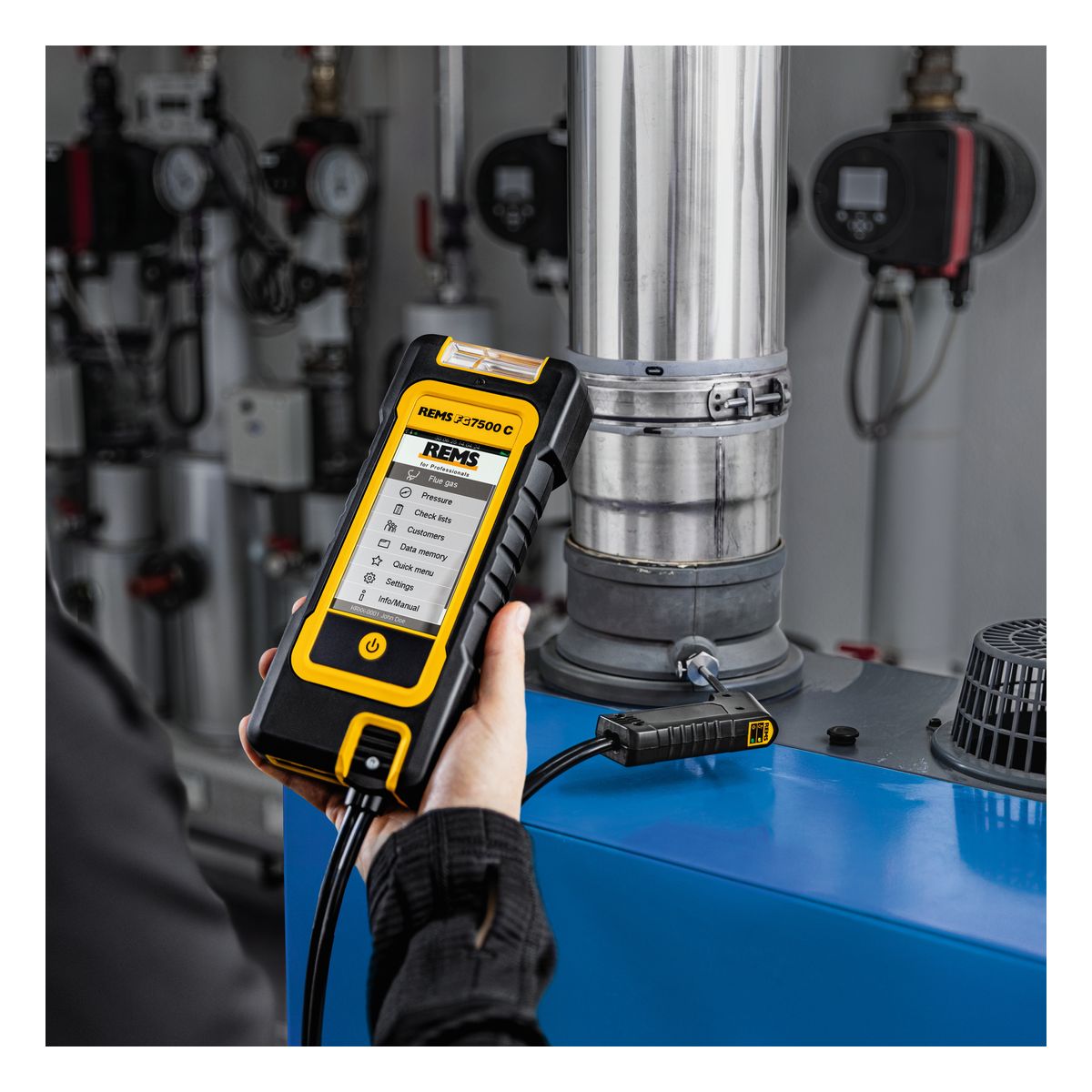

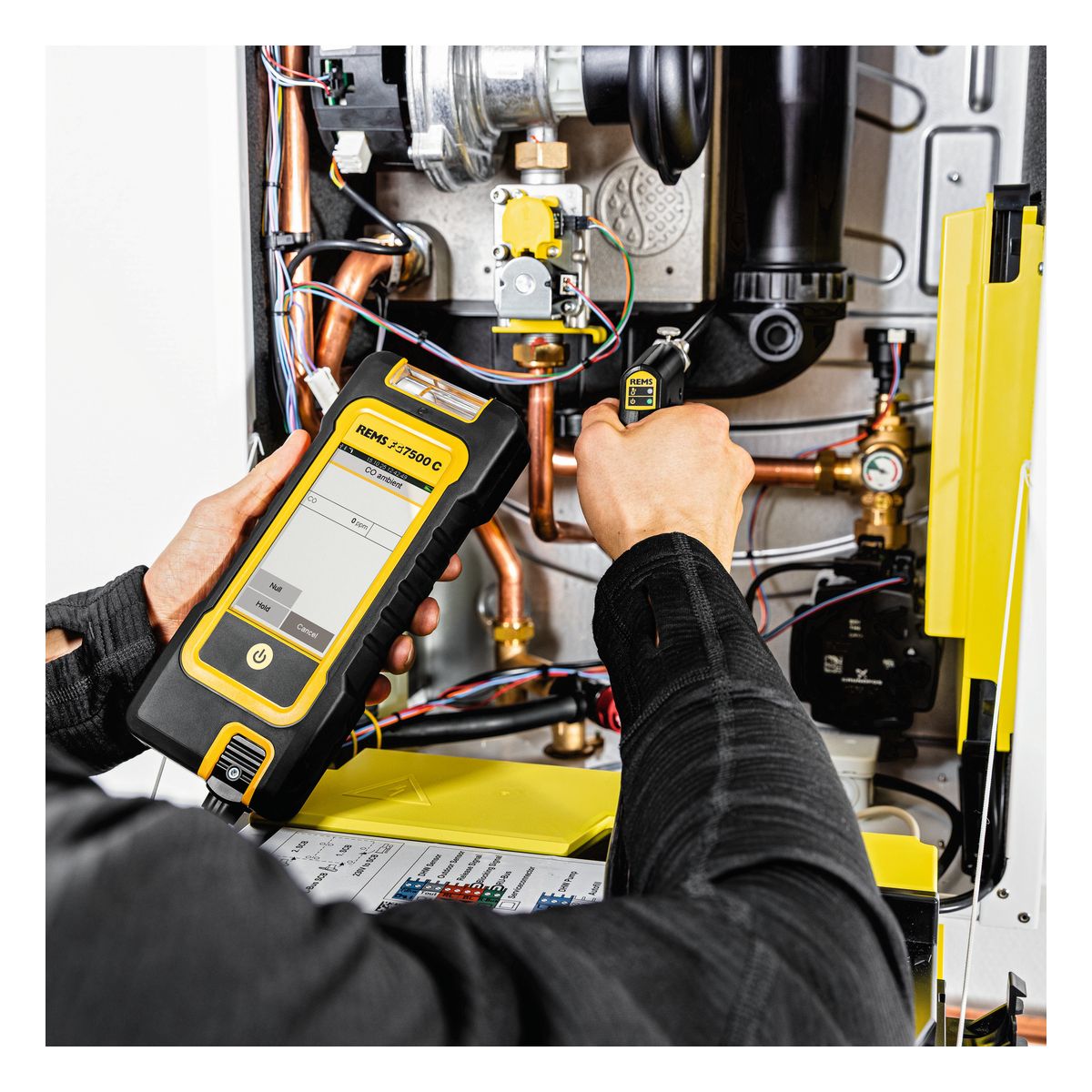

The REMS 610065 FG7500 NO C Set is a professional flue gas analyser that tells you exactly what's happening inside a boiler or heating system's exhaust gases, so you can check it's burning safely and efficiently. In plain terms: you slot the probe into the flue and the device reads the gases coming out, checks the draught and pressure and tells you whether the appliance is working as it should. This version adds an extra internal NO (nitric oxide) sensor on top of the standard FG7500 C's readings, giving engineers who also work on oil-fired systems, or who need a wider range of combustion gas readings, everything they need in one instrument.

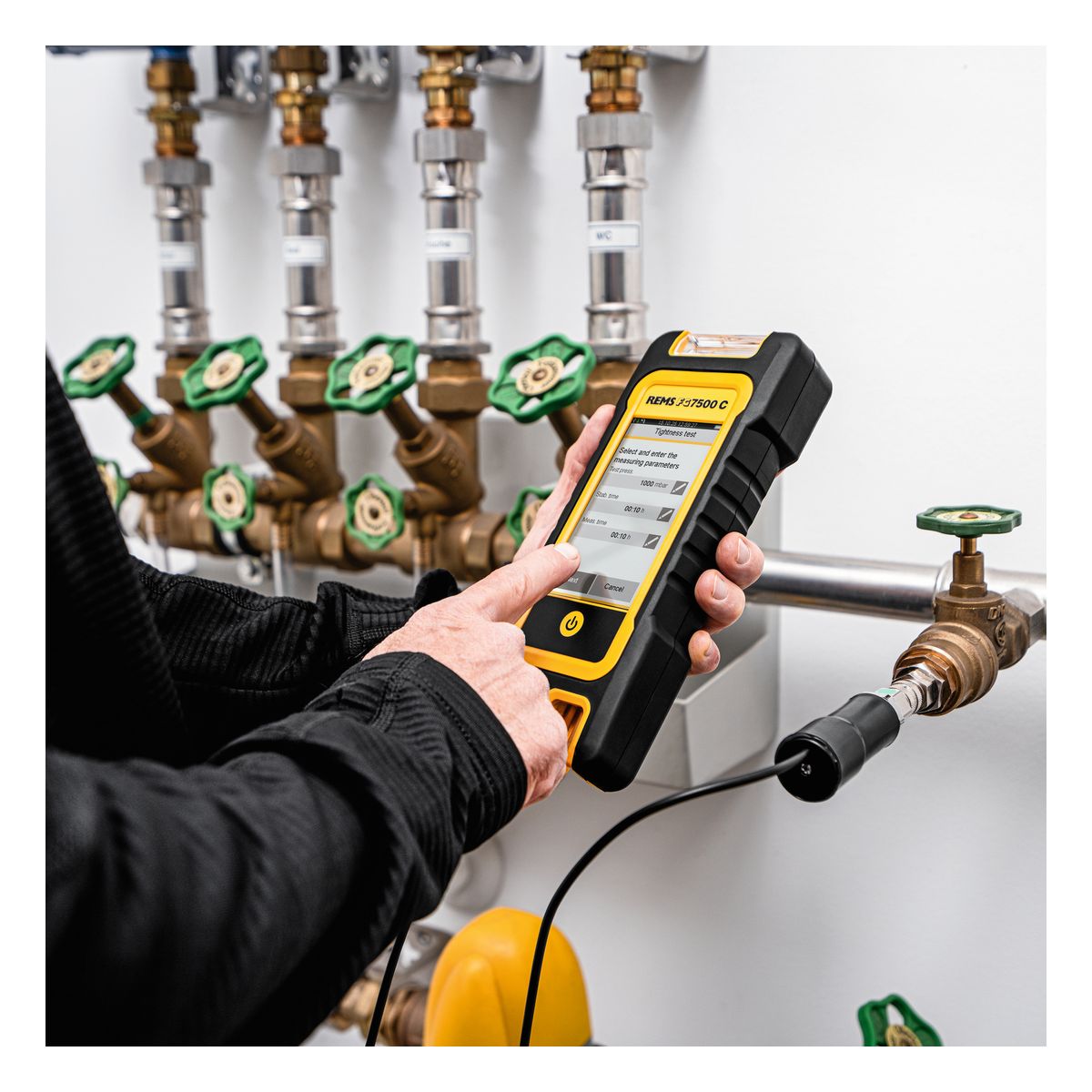

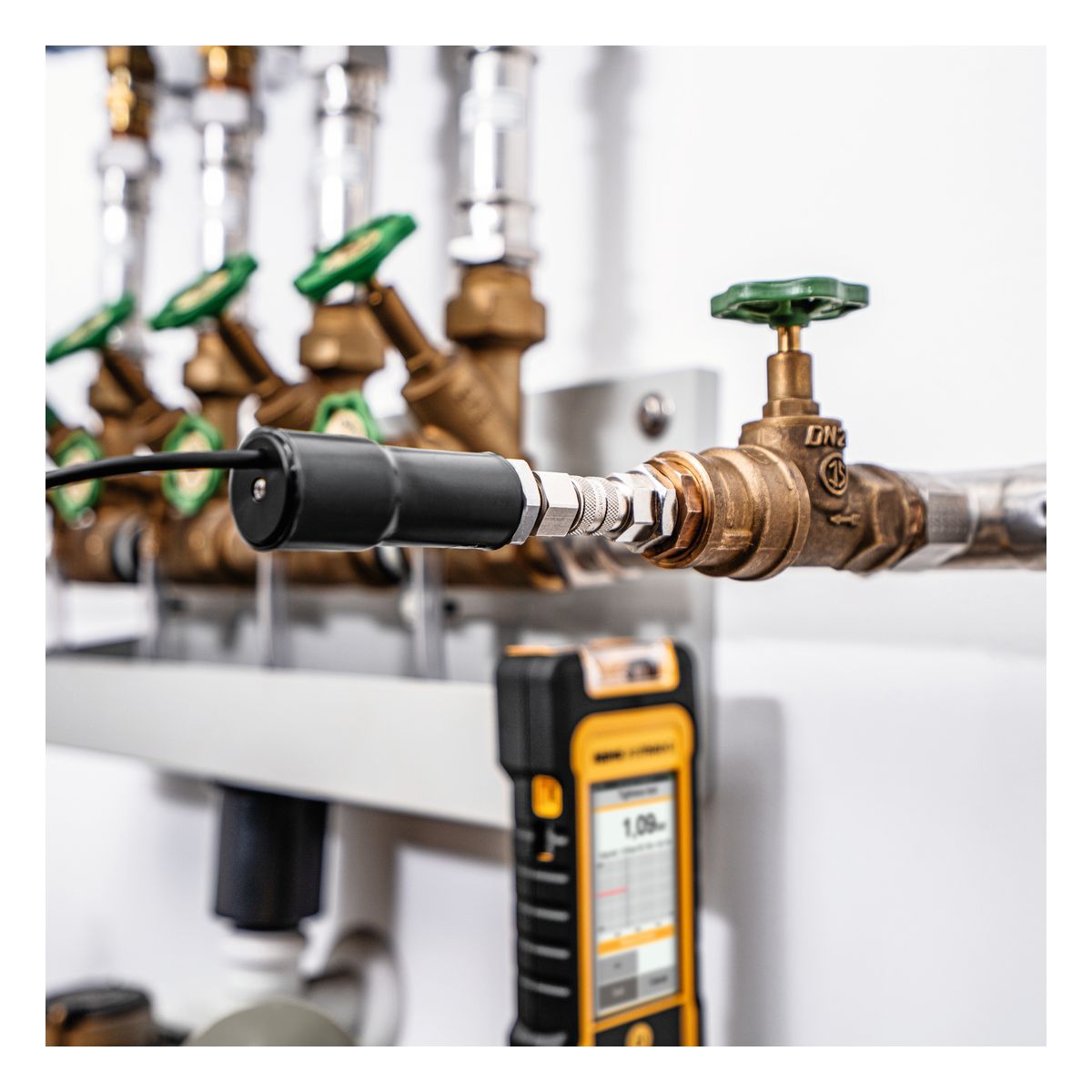

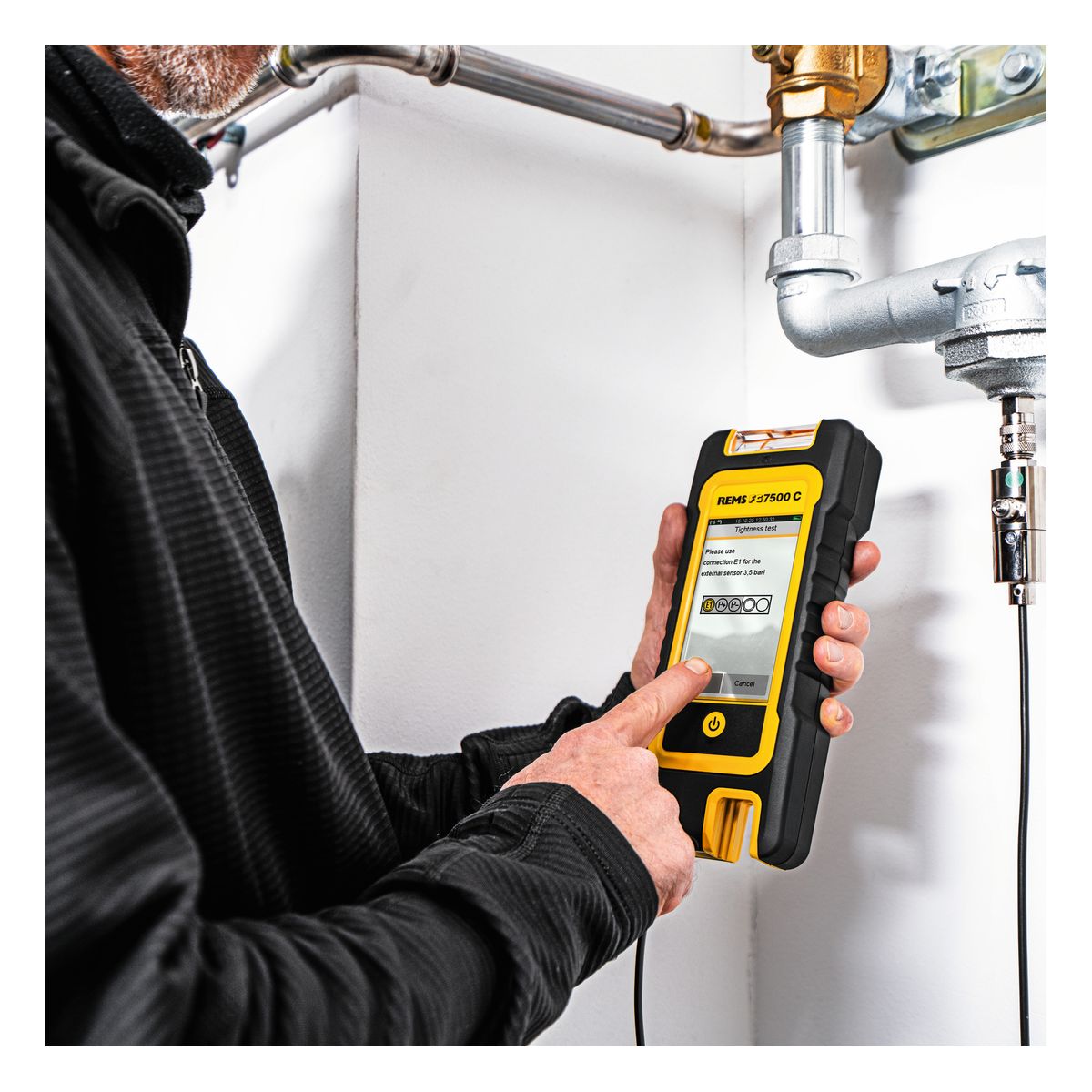

What sets the FG7500 NO C apart is that it's genuinely one device doing several jobs: flue gas analysis, pressure testing and leak testing on water, gas and heating systems, all built into a single compact, one-handed tool weighing just 540g. A large 4.5" touchscreen walks you through each test step by step, so you're never guessing what to do next and results can be saved, printed, or sent straight to your phone or laptop over Bluetooth or USB using the free REMS mCon app. Backed by REMS's manufacturer warranty, extendable to 4 years with free registration at rems.de/service.
Features and Benefits

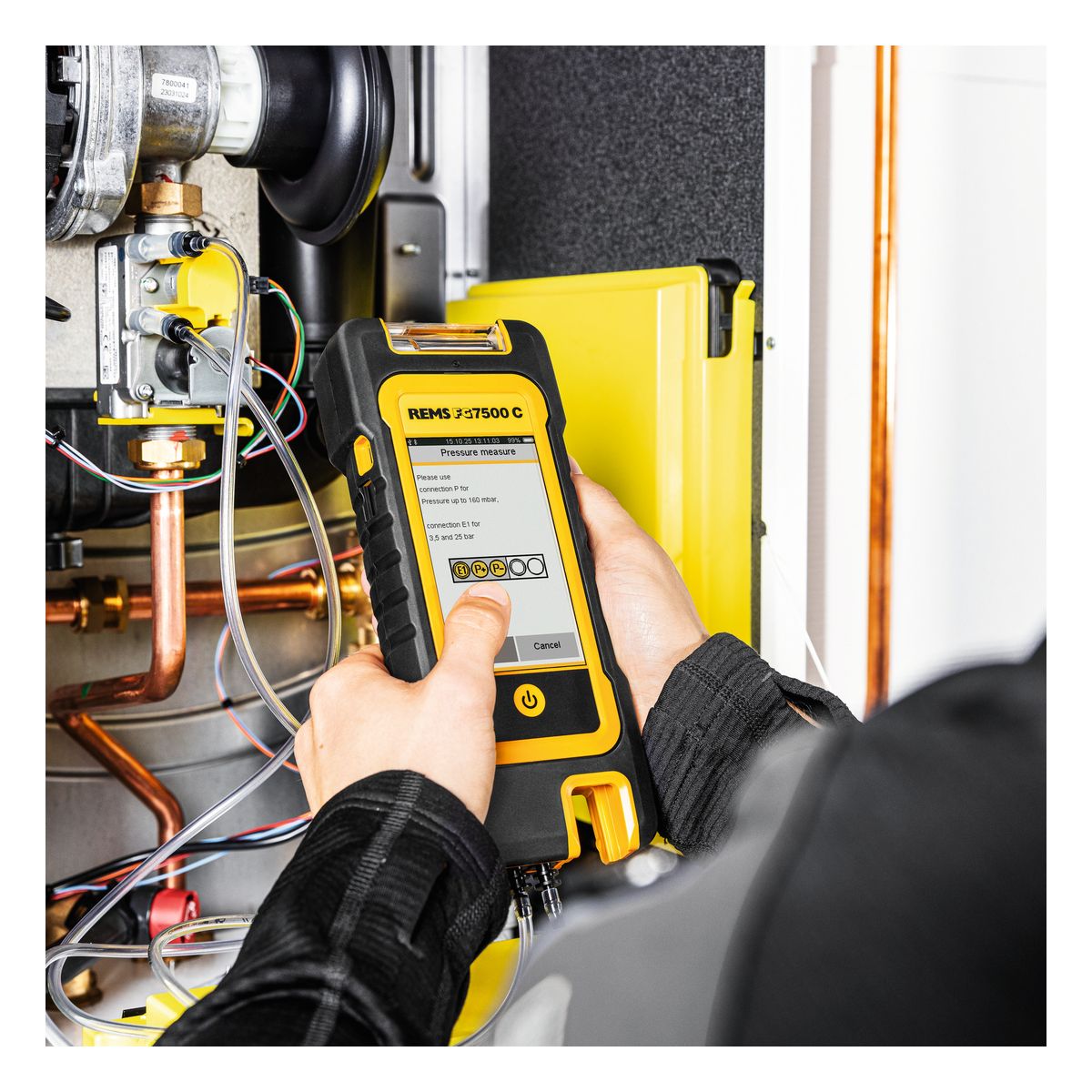

All-in-one flue gas analysis, pressure testing and leak testing device
Additional internal NO sensor for wider combustion gas analysis

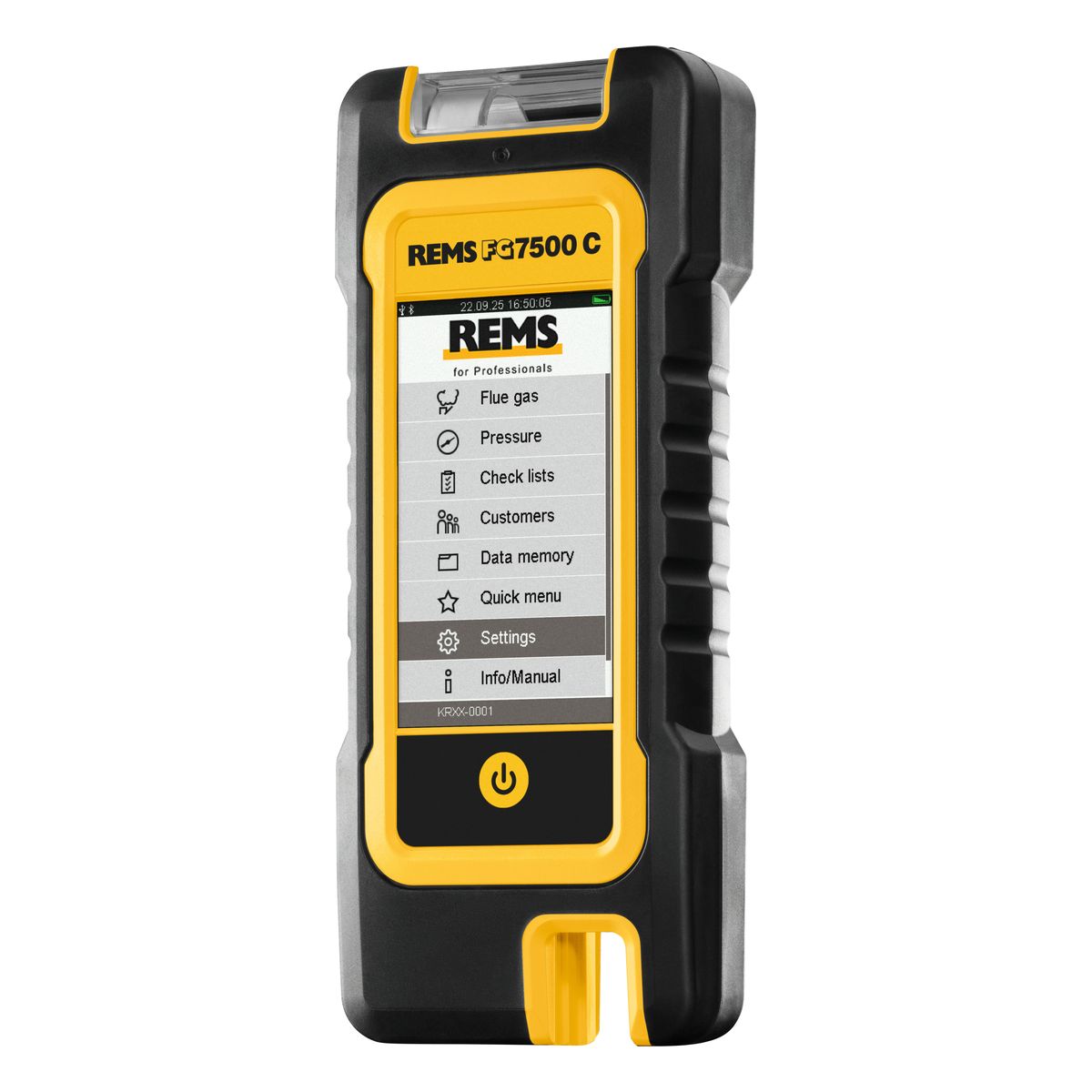

Step-by-step touchscreen guidance makes testing straightforward

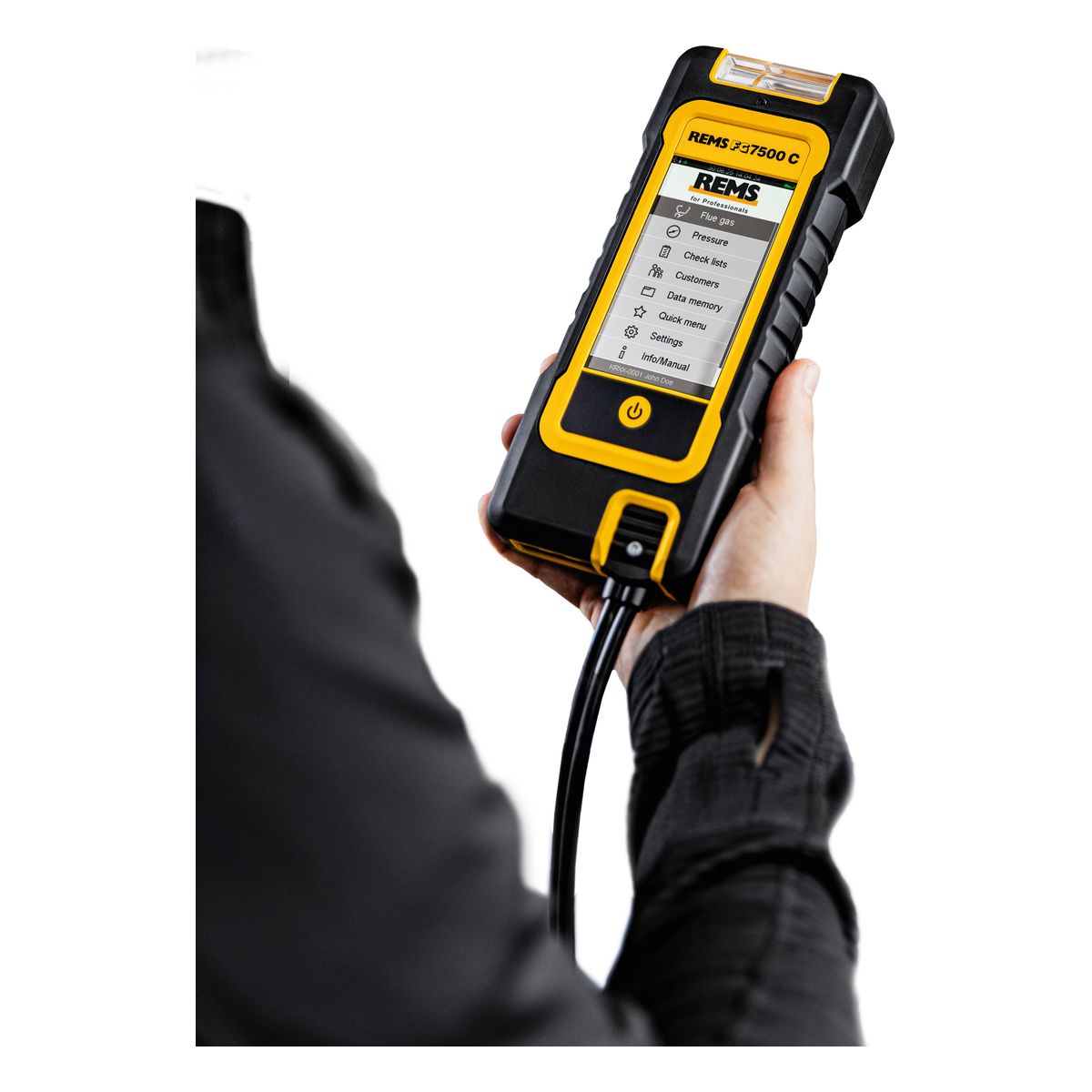

Ultra-light at only 540g, built for genuine one-hand use
Quick-change gas cartridge with easy-clean condensate tank
Simultaneous draught and pressure measurement saves a step
Results logged with date, time and reference number for easy record-keeping

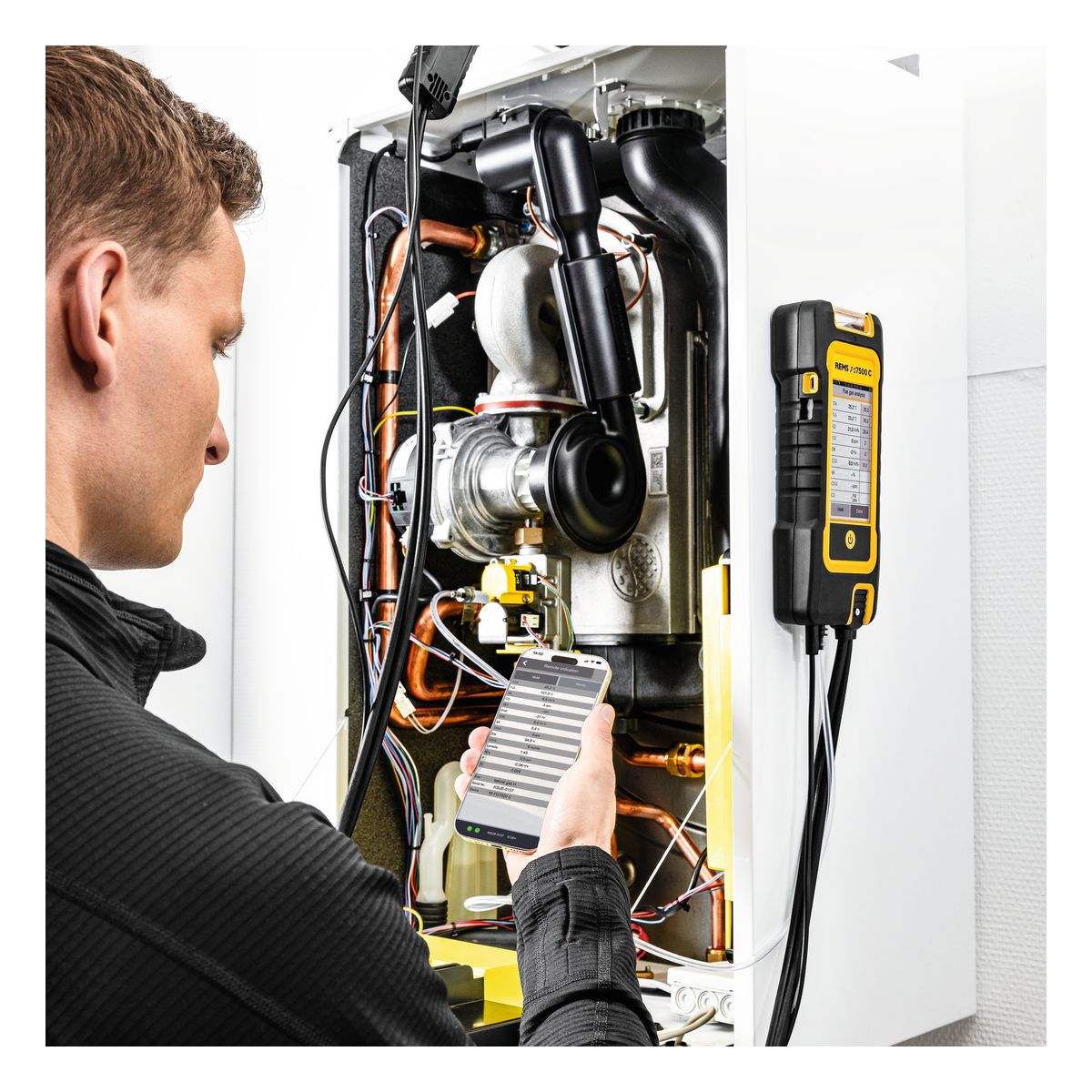

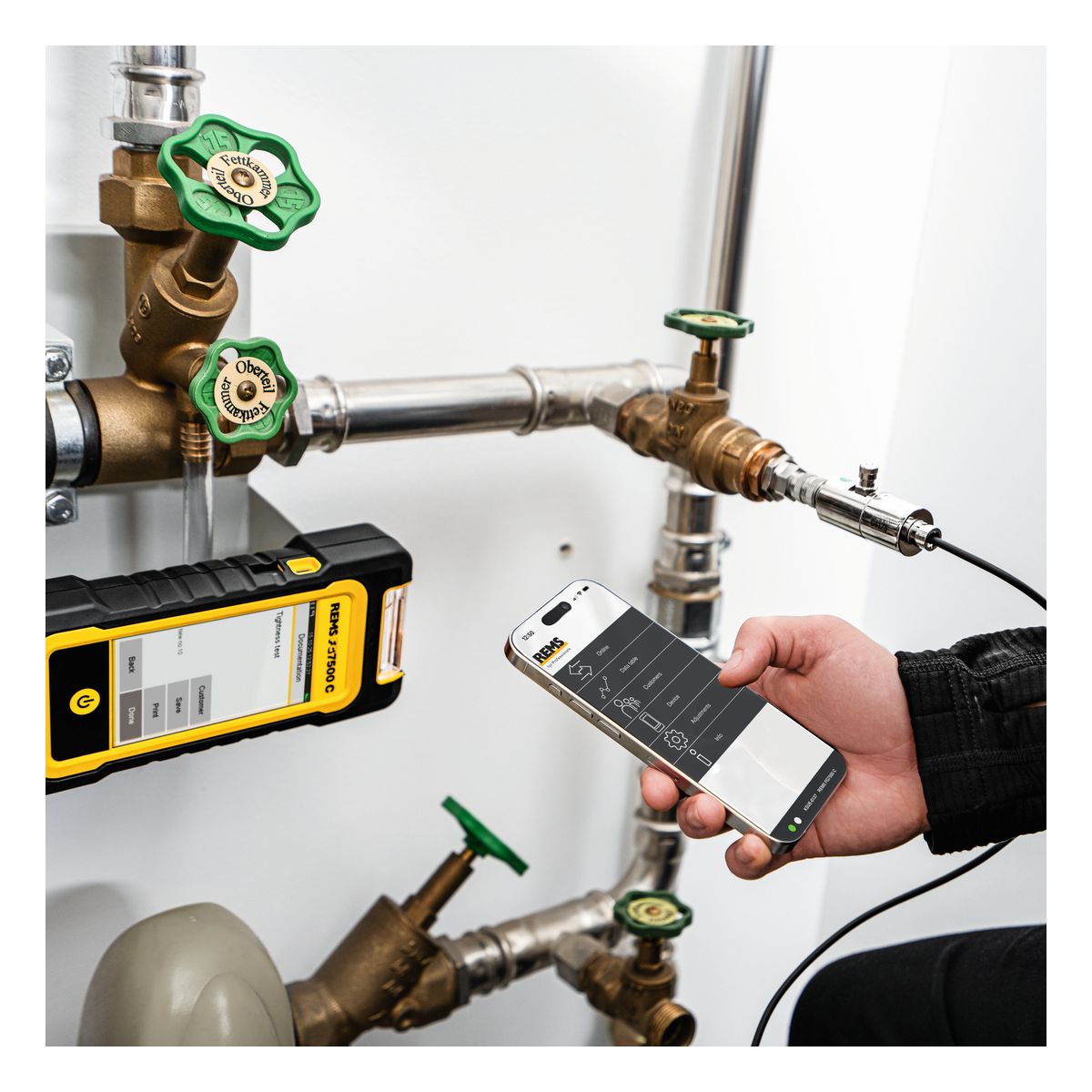

Send results wirelessly via Bluetooth (mCon App) or USB (PC200P)
Rechargeable battery for approx. 8 hours of continuous use
Technical Specification
Weight: 540g (measuring instrument)

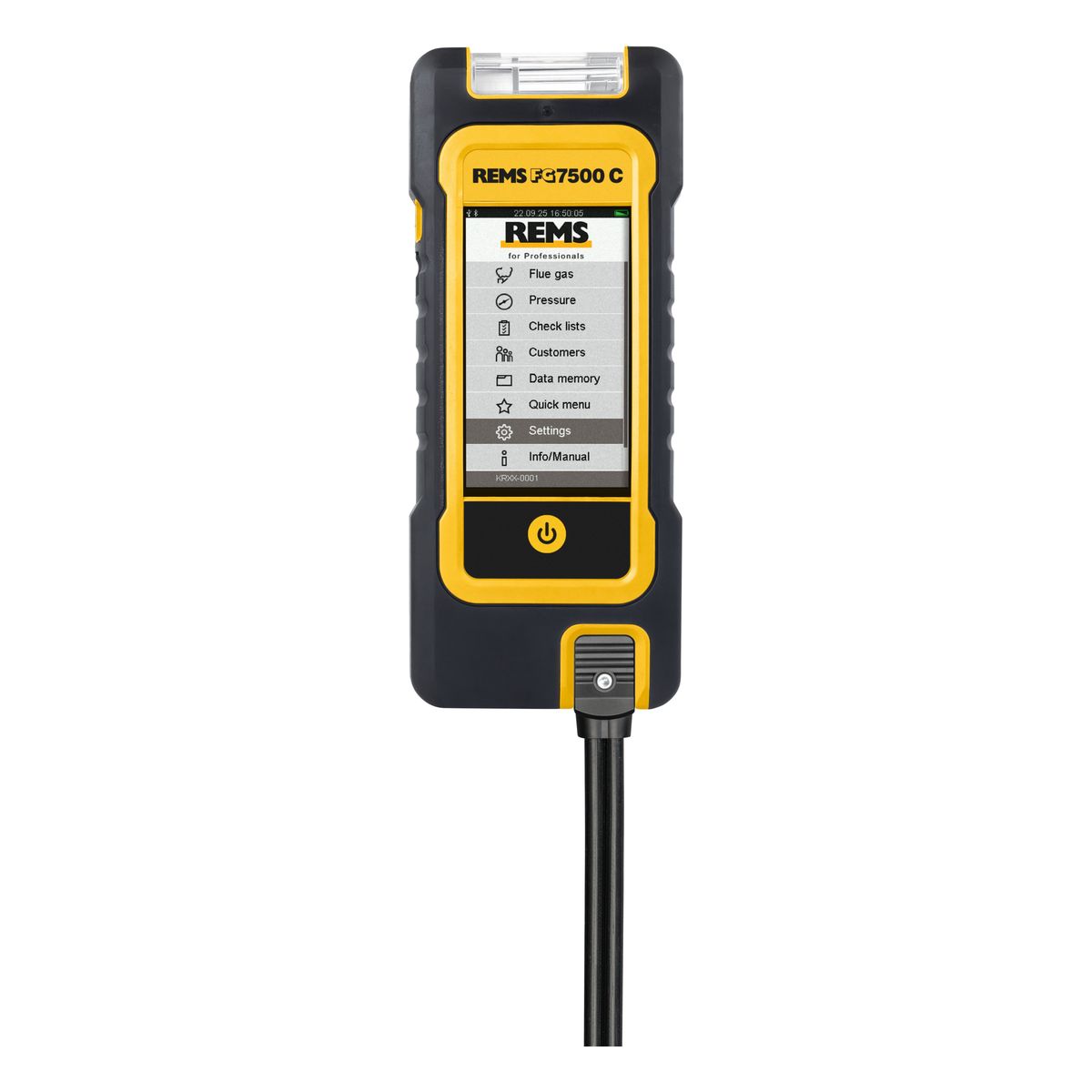

Display: 4.5" colour touchscreen, 480 x 272px
Flue Gas Analysis: to EN 50379 Parts 1 and 2
Internal Pressure Sensor: up to 150 hPa/mbar
Battery: Li-Ion 3.7v, 3.4Ah, approx. 8 hours continuous use

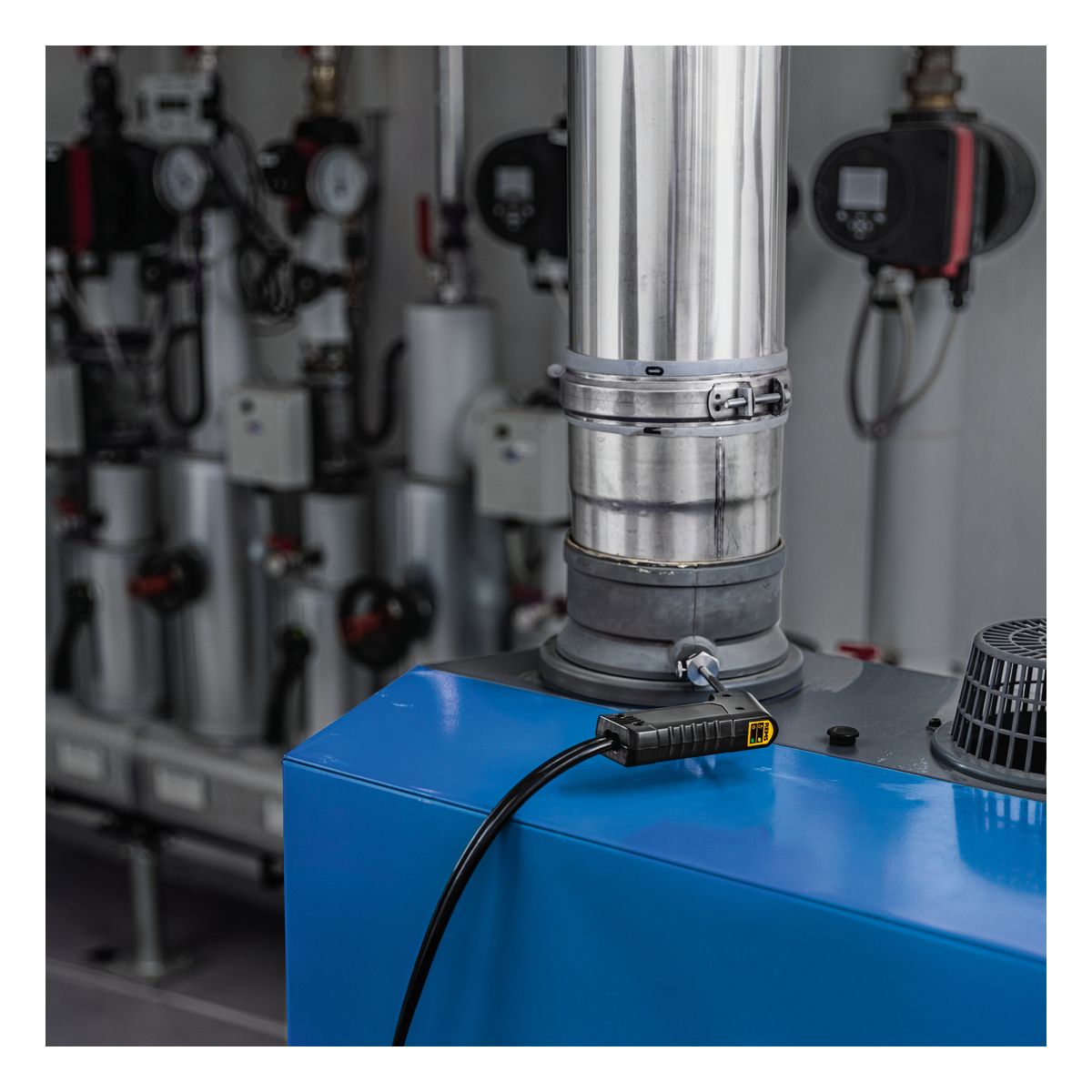

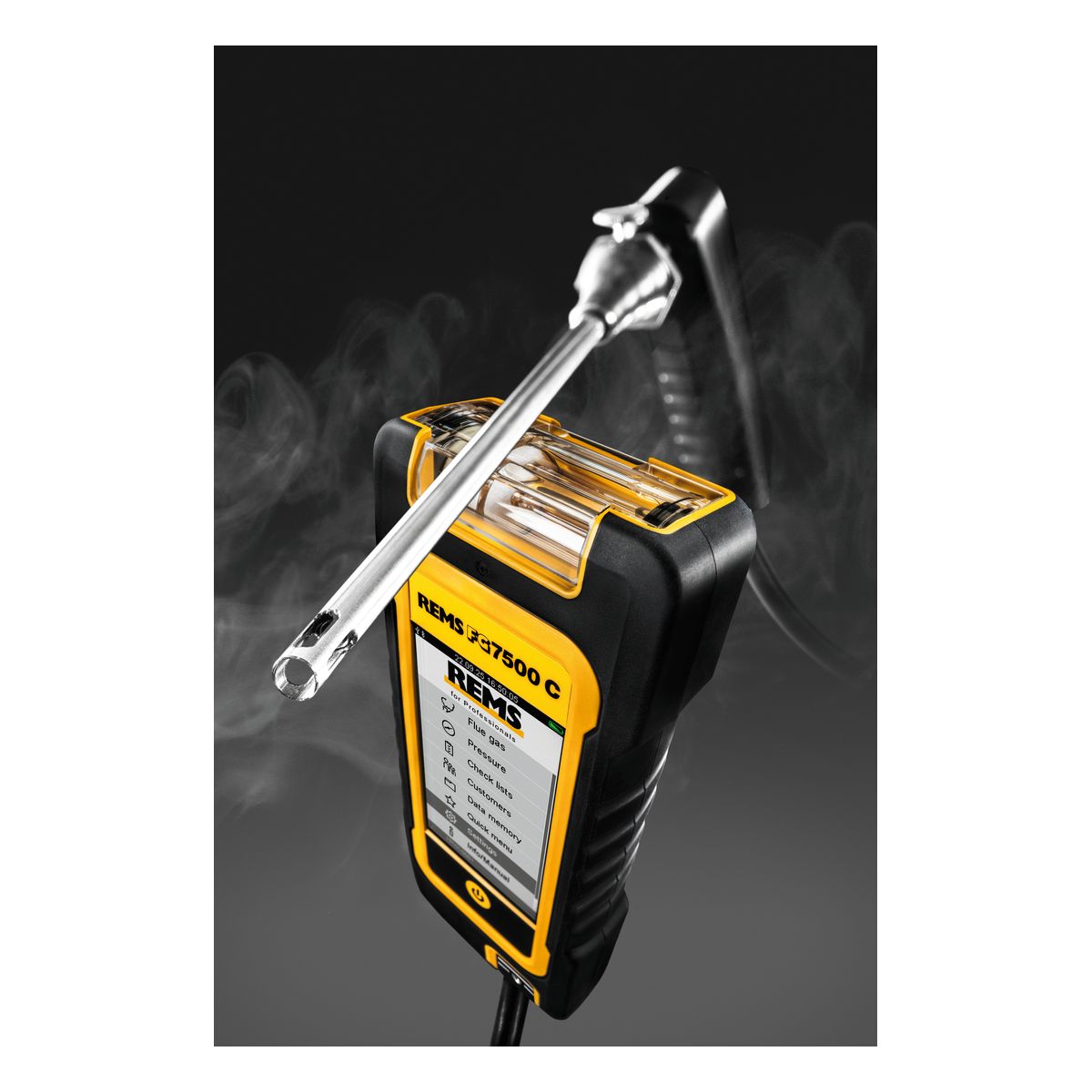

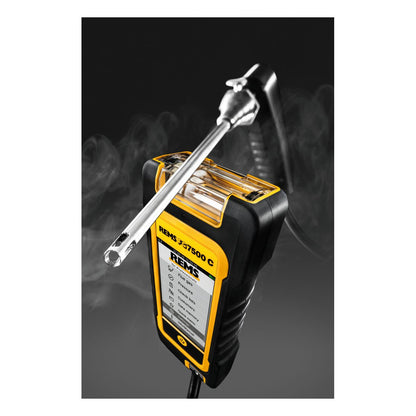

Probe: Thermocouple with draught sensor, Dm 6mm x 210mm, 1.4m flexible hose
Power Supply/Charger: 100-240v, 50-60Hz, 7.5W, 5v, 1.5A

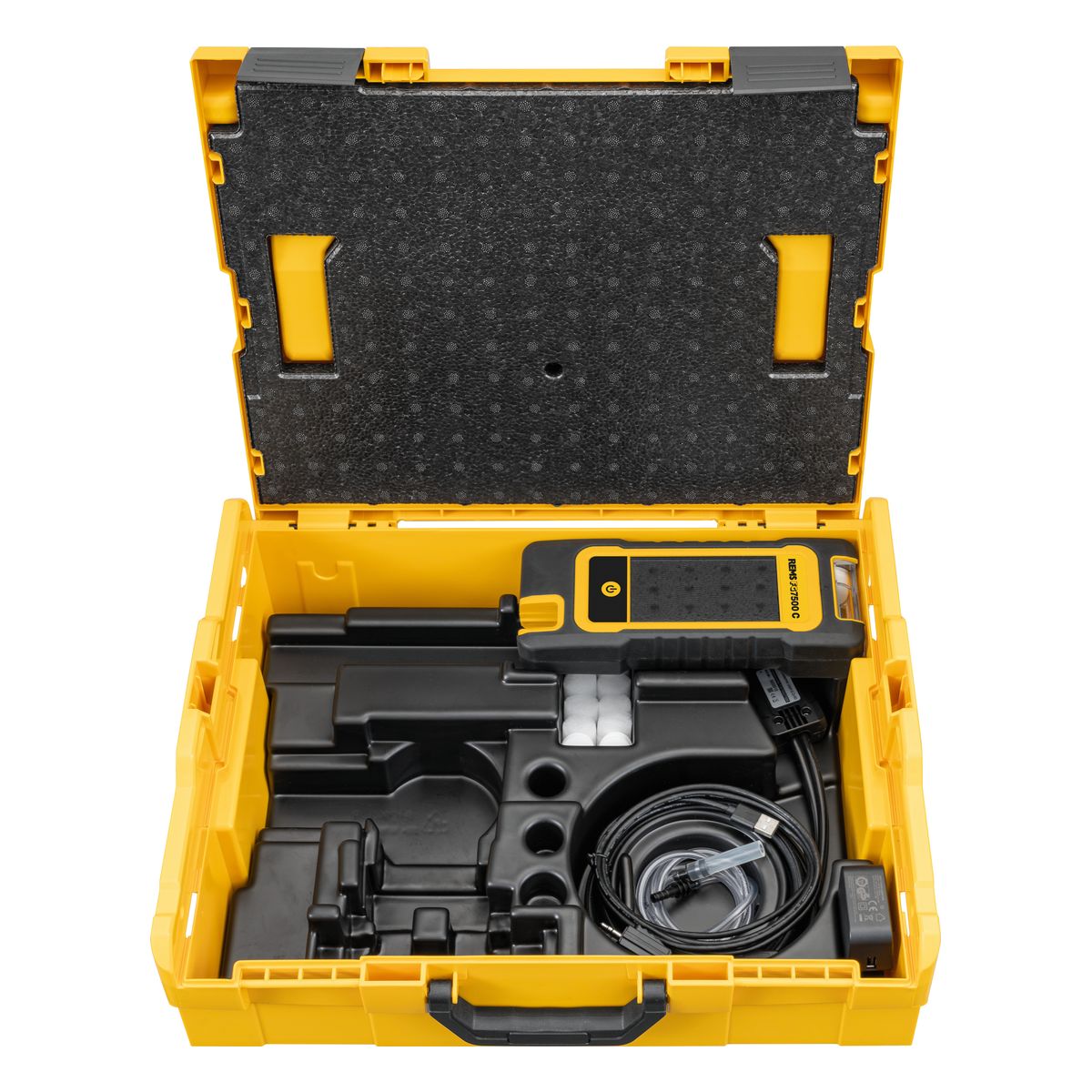

What's Included?
610065 FG7500 NO C measuring instrument with gas processing cartridge
Flue gas probe FG7500 with temperature and draught sensor
