REMS 611075 PX4500 C Set 3.5 bar Pressure Testing Meter

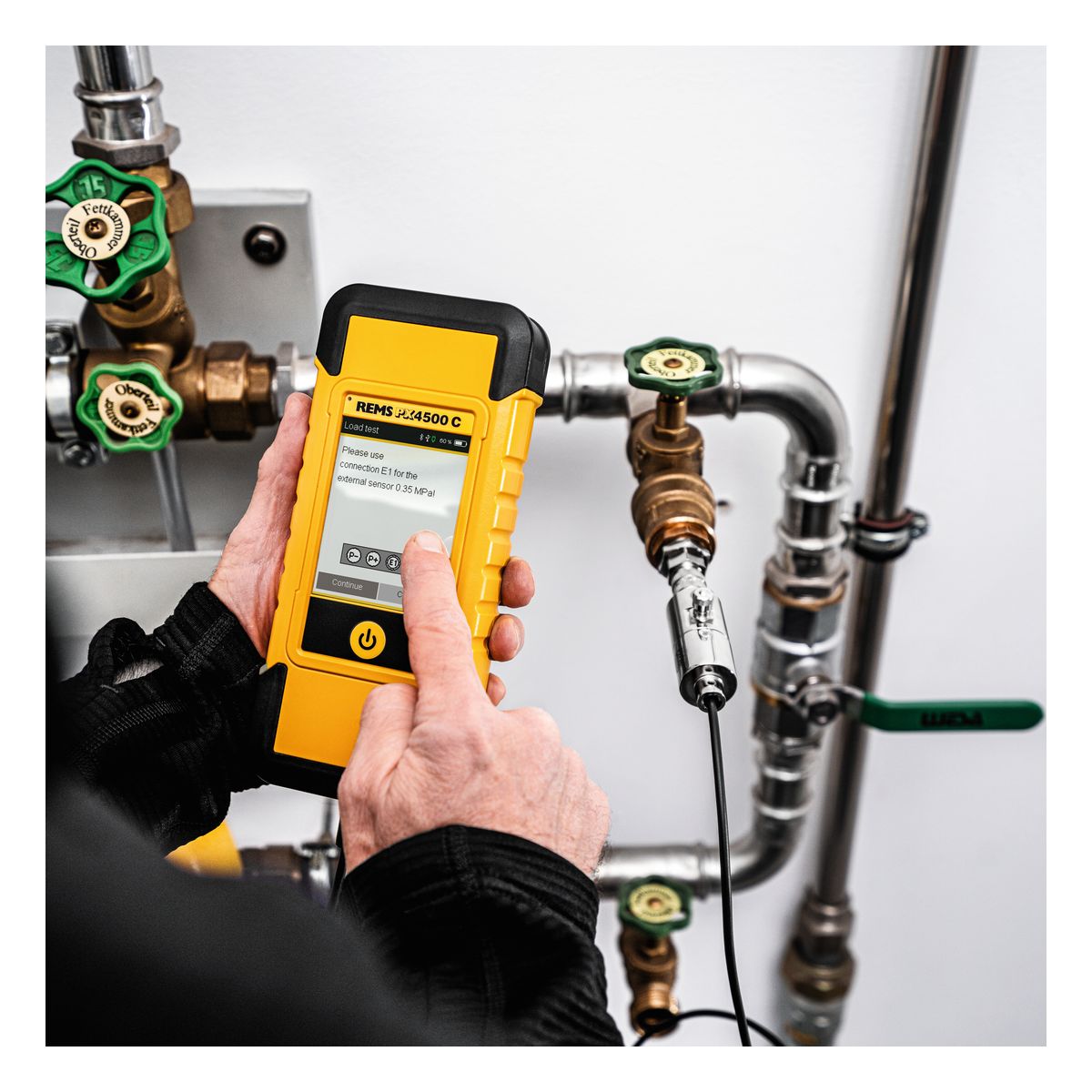

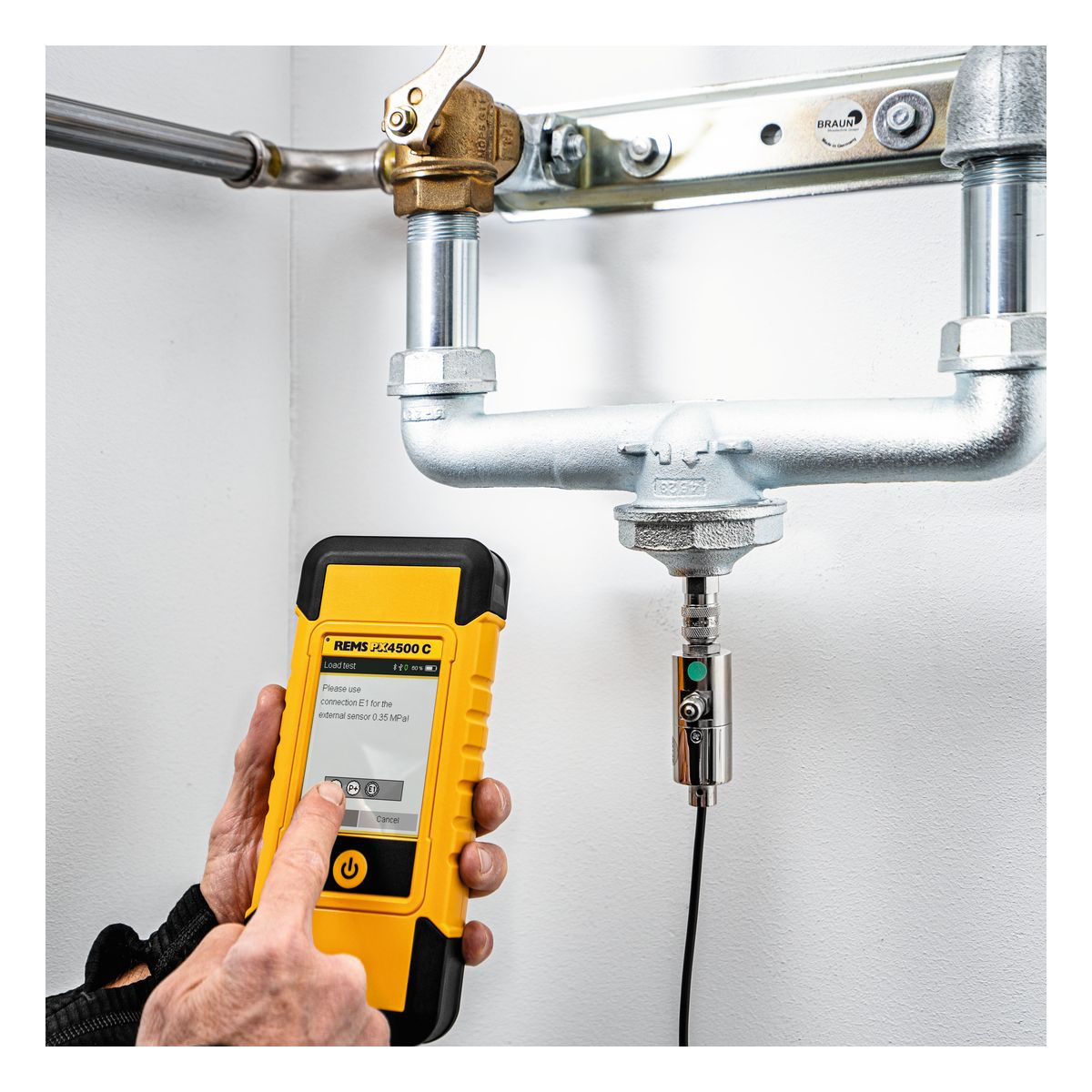

The REMS 611075 PX4500 C Set 3.5 bar is a compact pressure and leakage testing device that tells you whether a pipe, water or gas installation is properly sealed before it's signed off. In plain terms: you connect the hose to the system you're testing, build up pressure with the manual pump, and the device monitors that pressure over time, telling you straight away if it's holding steady (a pass) or dropping (a leak). It's the kind of test needed for drinking water installations, radiator and underfloor heating systems, and gas and liquid gas installations, all with one instrument.

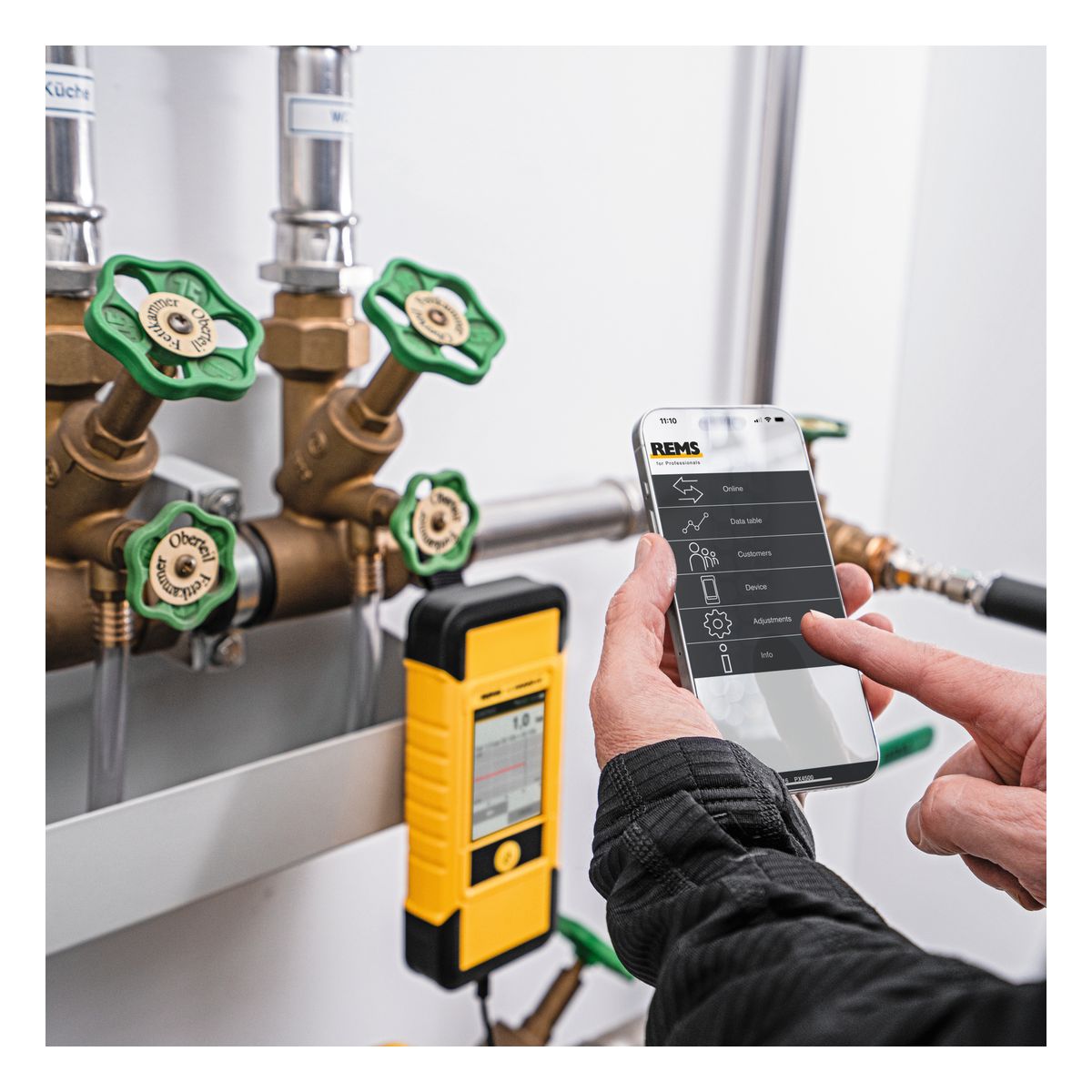

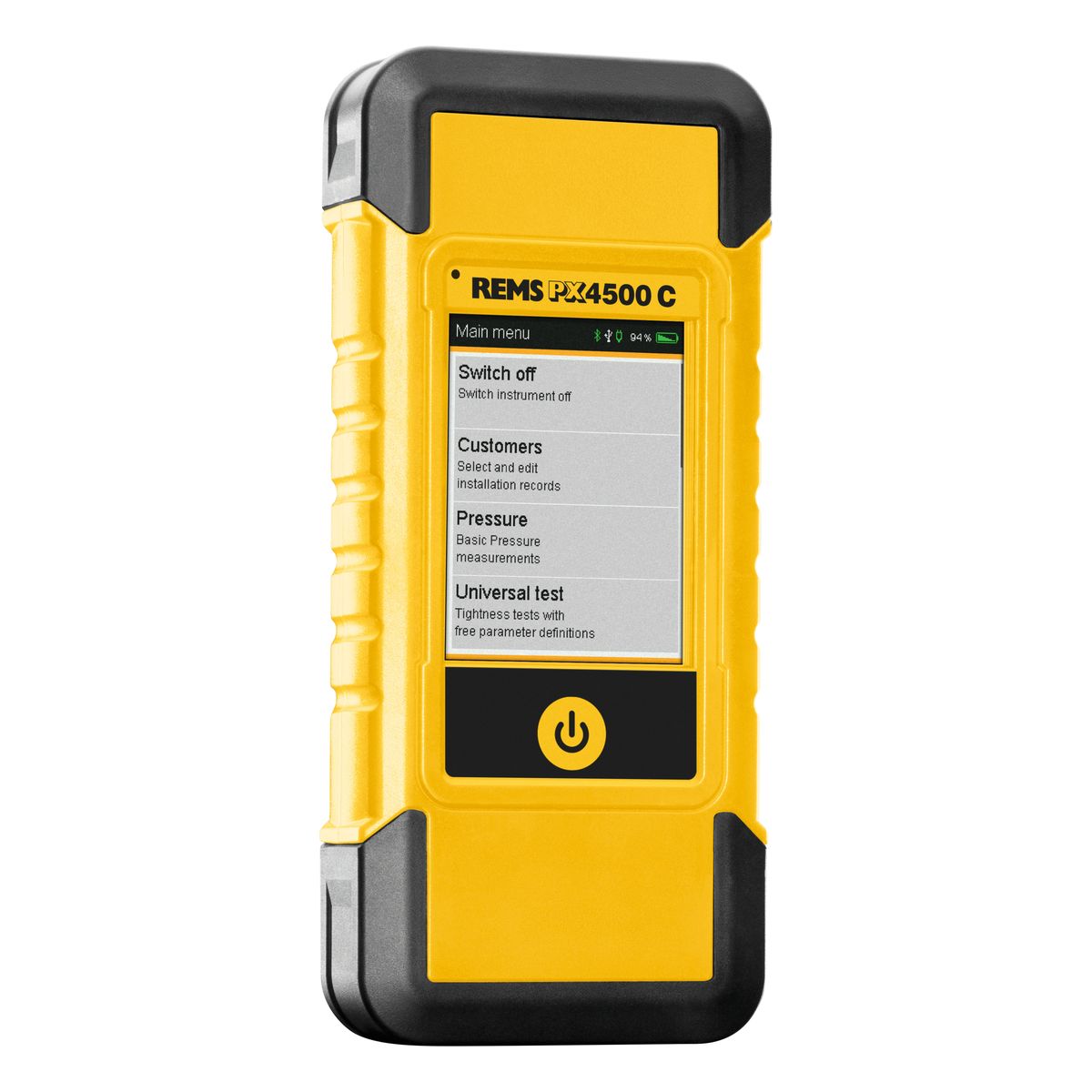

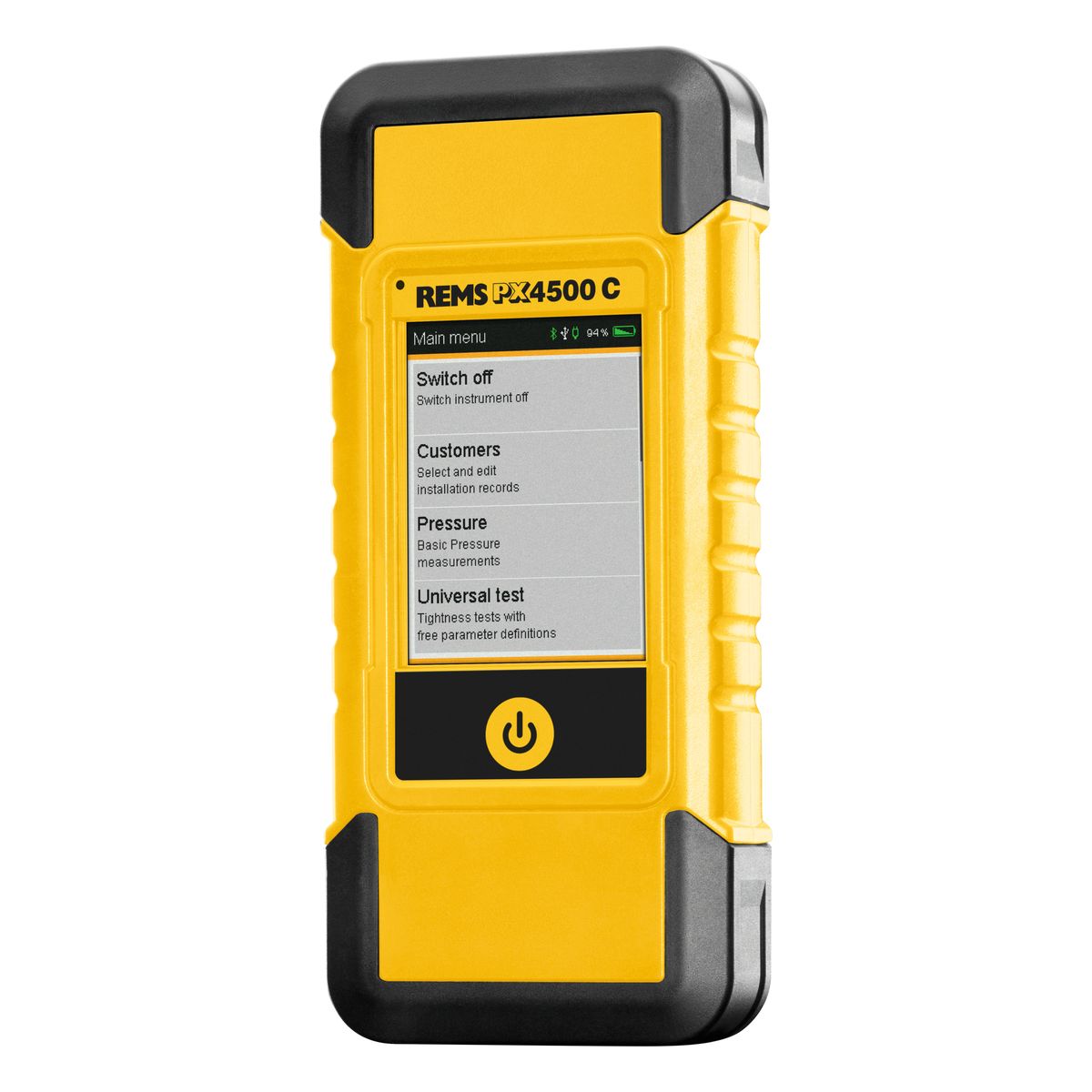

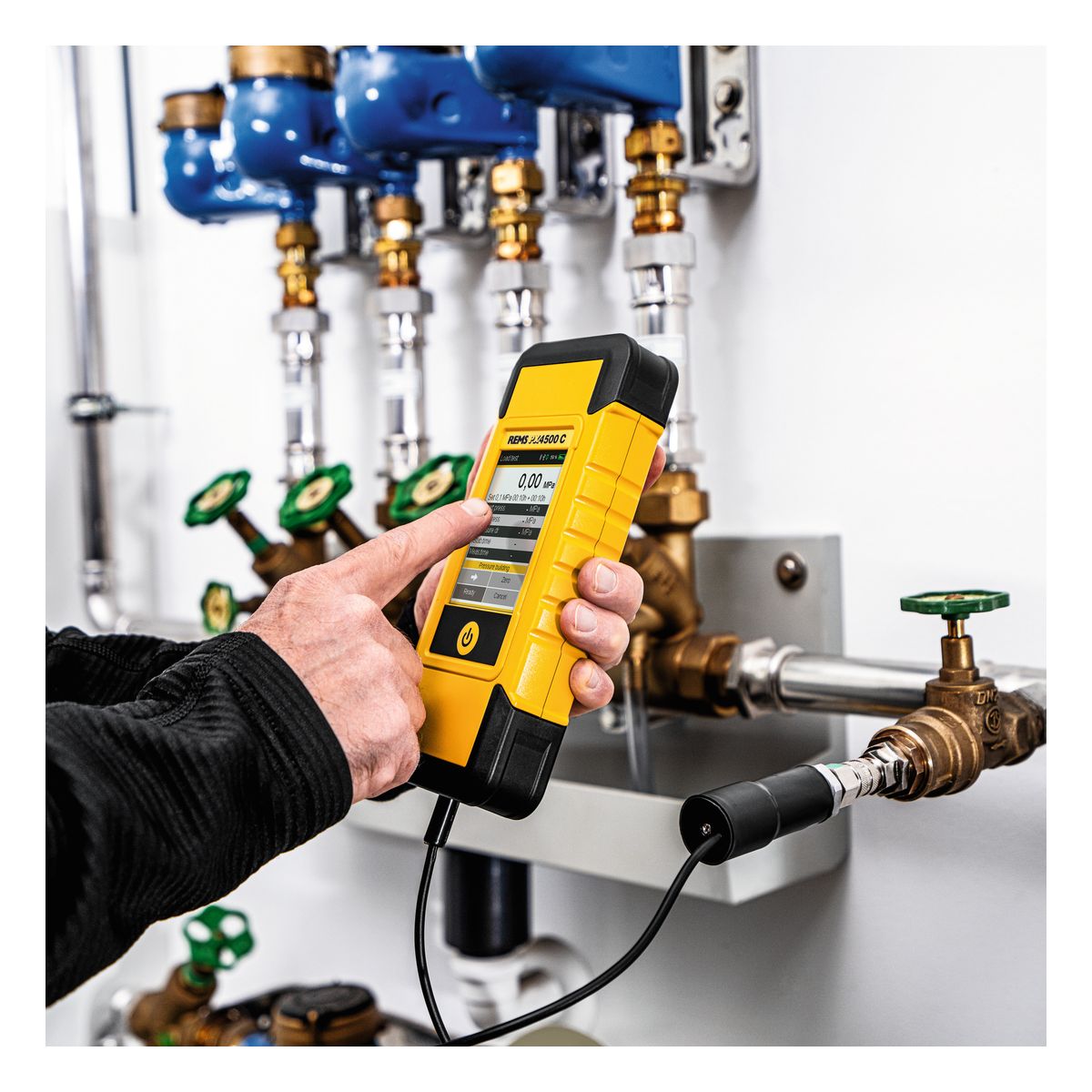

Weighing only 345g, it's built for genuine one-hand use, with a tough, impact-resistant housing and a clear 3.5" touchscreen that walks you through each of its 13 built-in test programs step by step, so you always know what to do next. A fastening kit with Velcro, a hanging eye and a magnet means you can leave it in place, hands-free, while a test runs. Every result is logged with date, time and a reference number, plotted as a pressure-over-time graph so you can show a client exactly how the test went, and results can be printed, saved, or sent straight to your phone or laptop over Bluetooth or USB using the free REMS mCon app.

Features and Benefits

• All-in-one pressure and leakage testing device for water, gas and heating systems
• 13 built-in test programs with step-by-step touchscreen guidance
• Ultra-light at only 345g, built for genuine one-hand use
• Manual compressed air pump for fast, accurate pressure build-up
• Time/pressure diagram records the full test for easy client reporting
• Results logged with date, time and reference number
• Send results wirelessly via Bluetooth (mCon App) or USB (PC200P)
• Fastening kit (Velcro, hanging eye, magnet) for hands-free use
• Rechargeable battery for approx. 10 hours of continuous use

Technical Specification

• Weight: 345g (measuring instrument)
• Display: 3.5" colour TFT LCD, touch function, 320 x 240px
• Pressure Testing (air/inert gas): up to 0.4MPa/4 bar
• Pressure Testing (water): up to 2.5MPa/25 bar
• Included Pressure Sensor Range: up to 0.35MPa/3.5 bar
• Differential Pressure Testing: up to 150 hPa/mbar
• Battery: Li-Ion 3.7v, 2.7Ah, approx. 10 hours continuous use
• Power Supply/Charger: 100-240v, 50-60Hz, 7.5W, 5v, 1.5A

What's Included?

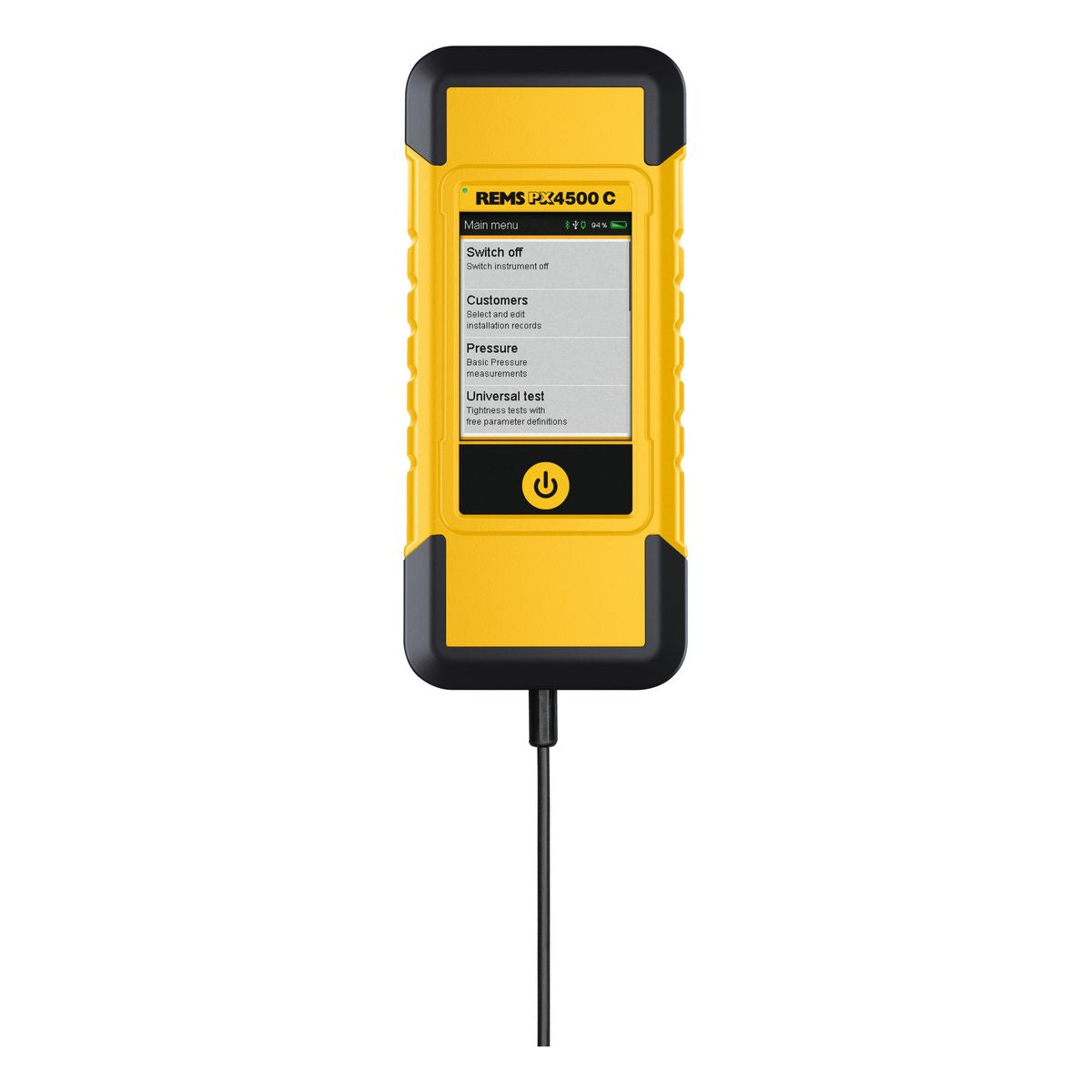

• 611075 PX4500 C measuring instrument
• Pressure hose PX/FG, Dm 5mm, 1m long
• Air pump connection piece with Schrader valve

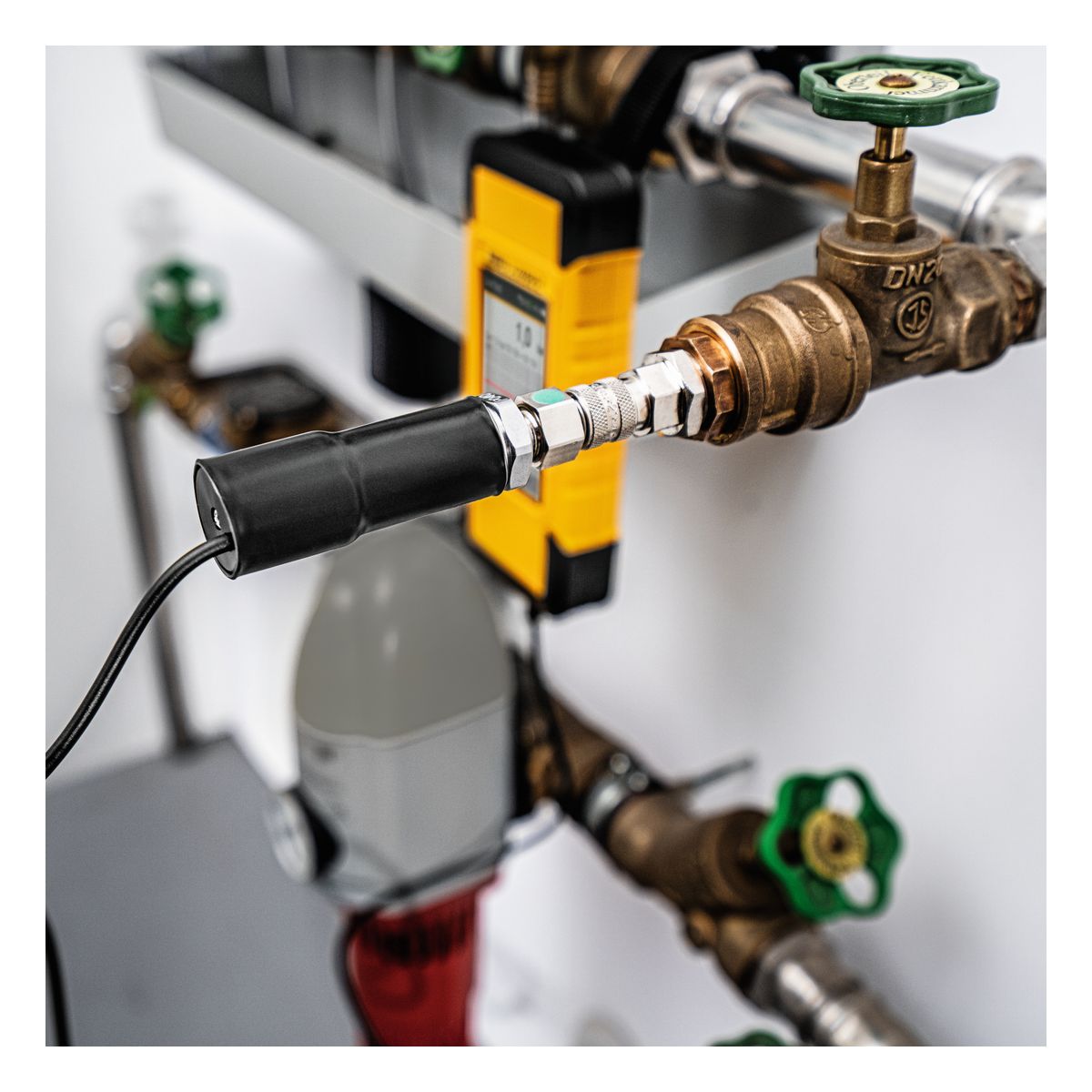

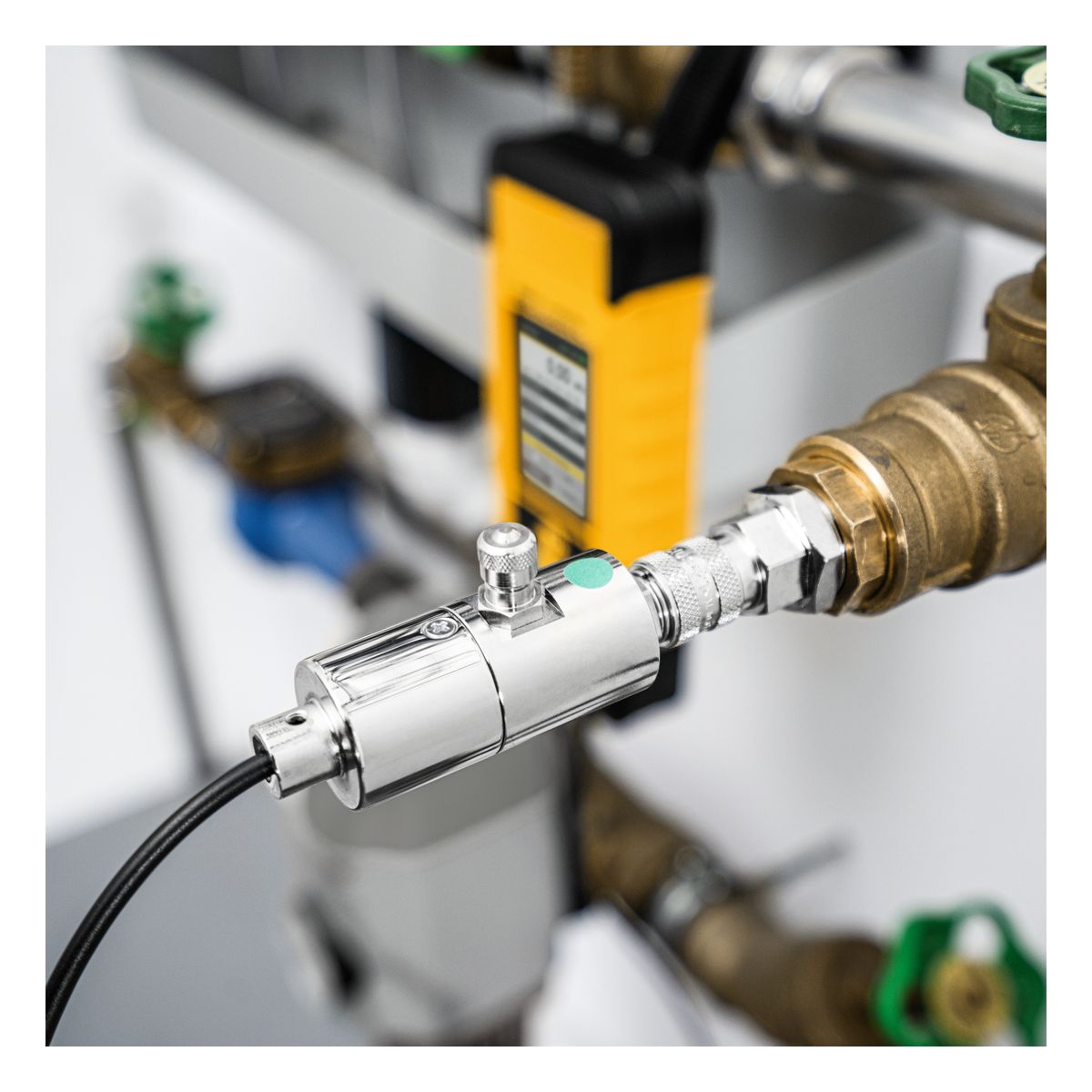

• Electronic pressure sensor, up to 0.35MPa/3.5 bar
• Adapter quick coupling DN5 to R1/2"
• Single pipe meter cap G2" IG (for DN25)
• Manual compressed air pump, up to 0.4MPa/4 bar
• Fastening kit (Velcro, hanging eye, magnet)
• USB-C to USB-A cable
• Power supply/charger, 100-240v

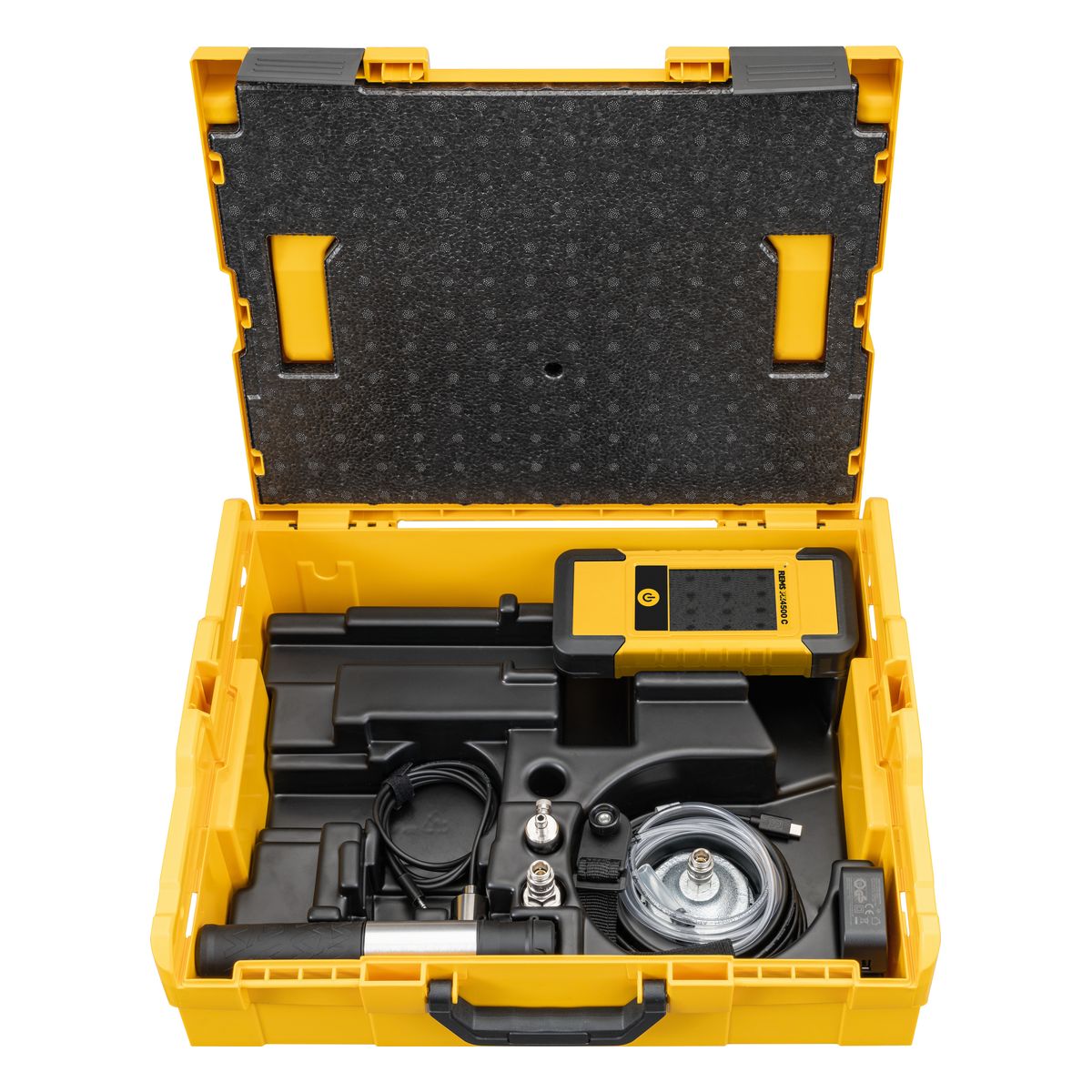

• L-Boxx system case
